LENCO 16" X 12" HEAVY DUTY PERFORMANCE TRIM TAB KIT W/O SWITCH KIT 12V
Returns for this product must be made directly with the manufacturer for warranty or replacement.
Lenco 16" x 12" Heavy Duty Performance Trim Tab Kit w/o Switch Kit 12V
16" x 12" Heavy Duty Performance Trim Tab Kit w/o Switch Kit -12V

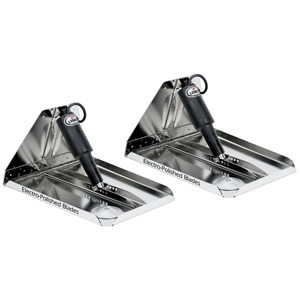

Lenco Electric Heavy Duty Polished Blade Trim Tab Kits are supplied with electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges, 85 degree inside taper and 1/4" diameter hinge pin. Kits equipped with Extreme Duty actuators with 5/16" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes. .
Kit Contents:
- 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
- 2 each of #15055-001 XD extreme duty actuators with 6' lead and Deutsch plugs
- 2 each of #30133-103 20' actuator extension wiring harnesses
- 1 each of the Lenco owner’s / installation manual
- Boat-mounting hardware supplied by customer
Specifications:
- Suggested Boat Length: 20' to 38'
- Length of Tab: 16"
- Width of Tab: 12"
- Minimum Transom Height: 10.5"
- Blades: 12 Gauge Stainless Steel
- Finish: Electro-Polished
- Switch Kit: Sold Separately
- Class: Fuel Efficient
- Compliance: CE Certified
- Compatibility: Any Boat
- Switch Required: 15069-001 or 15070-001
- Actuators: 12-volt
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
