Category: Mounting Solutions
RAM MOUNT HANDLEBAR U-BOLT BASE W/ROUND 1/4"-20 THREADED STUD
-- "IN-CART PRICING" Applies to This Item! --
** RAM Mounting Systems Part Number - RAM-B-149Z-C1U **
Our SKU# - 44203
Click Here for Larger Image

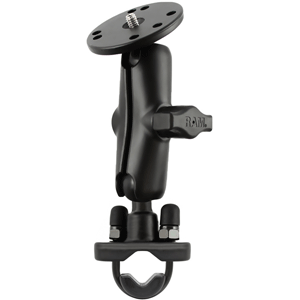

RAM Mount Handlebar U-Bolt Base w/Round 1/4"-20 Threaded Stud
RAM Mounting Systems Part Number:
"Minimum Ad Price" $35.49
NOT IN STOCK
from RAM Mounting Systems
a "Refurb" or "Reman"!)
TIP: If this is the ONLY item you're ordering, choose the "BEST WAY" Shipping Option.
The weight on this ONE item is small enough to ship via the US Post Office First Class Mail
--You'll receive it as fast (or faster) than our $9.95 Ground!
RAM Mount Handlebar U-Bolt Base w/Round 1/4"-20 Threaded Stud RAM-B-149Z-C1U:
RAM Handlebar Rail Mount with Zinc Coated U-Bolt Base & Round Base Adapter that Contains a 1/4"-20 Thread for Cameras
Part #: RAM-B-149Z-C1U
The RAM zinc coated u-bolt rail base consists of the 1" diameter ball and socket system with RAM Universal 1/4"-20 thread centered on a 2.5" diameter plate. This mount is designed to be a universal mounting solution for both still and moving cameras. The base has a 1.0" diameter rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt and nuts included will fit a circular rail with diameter from 0.5" to 1.25". To mount the rail base, place the top of the base on the rail and then slide the u-bolt around the rail, into the holes in the base top. Now tighten the screws onto the u-bolt until the base is clamped firmly. If you desire, you can now slot the black composite covers over the exposed ends of the u-bolt.
Powder Coated Marine Grade Aluminum
1" Rubber Ball "B" Size
The "U" in the part number reflects product packaged in poly bag. The male 1/4" long, 1/4"-20 thread in the middle of the 2.5" diameter plate will connect to the standard female thread found at the bottom of most still and video cameras.
Retail Price: $
Not in stock
