VICTRON GX LTE 4G-A CELLULAR MODEM F/GX DEVICES, NORTH AMERICA ONLY

WE'RE READY TO DEAL! CLICK HERE TO EMAIL Your Name, Phone Number, and Wish List
or Call Us at 1-440-617-0025 and we'll Quote our Best Pricing!

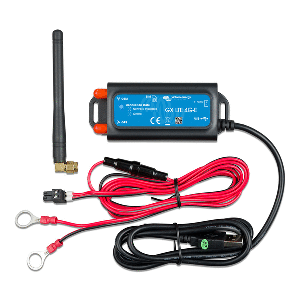

Victron GX LTE 4G-A Cellular Modem f/GX Devices - North America Only

GX LTE 4G-A Cellular Modem for GX Devices - North America Only

The GX LTE 4G is an accessory for GX devices. It is a cellular modem that supports 2G, 3G, and 4G technologies. It provides mobile internet for the system and a connection to the Victron Remote Management (VRM) portal.

Built-in GPS Receiver

The GX LTE 4G includes a built-in GPS receiver. When the optional active GPS antenna is installed, the system can be tracked as well as geo-fenced on the VRM Portal.

The required accessory part number is GSM900200100 - Active GPS Antenna for GX GSM.

GX Compatibility

The GX LTE 4G can be used with any of the GX devices and requires Venus OS v2.60 or newer to be installed on the GX device.

SIM Card

It requires a SIM card in the Mini-SIM format.

When to Use a Mobile Router Instead

The GX LTE 4G provides an internet connection for the GX device only. There is no option to share the internet with laptops, phones, or other devices. For installations where more devices need internet, such as a yacht or RV, consider installing a mobile router instead.

Antennas and Accessories

A small indoor LTE antenna is included. Optionally, Victron sells an outdoor LTE antenna, which increases the range.

Part number GSM900100400 - Outdoor 4G GSM Antenna.

Specifications:

Region: For North America
Used Module: SIMCom, SIM7600A
Supported LTE Bands: 2, 4, 12
Supply Voltage Range: 8 - 70VDC
Power Draw: 2.5W while 2G/3G/4G data transfer / <1.0W in idle mode / +0.4W if GPS is enabled
Operating Temperature Range: -40 +50°C (-40 - 120°F)
Power Cable (Included): 1.4m cable with inline fuse holder, terminal block, and 10mm ring terminals
Inline Fuse (included): T3.15A250V

Communication Specifications:

USB Communication Port: Fixed 1.0m cable with USB-A connector (connects to the GX device)
LTE Antenna Connector: Type SMA Female (optional 4G outdoor antenna GSM900100400)
GPS Antenna Connector: Type SMA Female (optional GPS antenna GSM900200100)
GNSS: GPS/Beidou/GLONASS/GALILEO/QZSS
SIM Card: Regular Mini SIM (supports both 1.8V and 3V)
Data Transmission (max. Download/Upload) LTE Cat-1: 10 Mbps / 5 Mbps
Data Transmission (max. Download/Upload) 3G (HSPA+): 42 Mbps / 5.76 Mbps
Data Transmission (max. Download/Upload) 2G (EDGE): 236.8 Kbps / 236.8 Kbps
Data Transmission (max. Download/Upload) 2G (GPRS): 85.6 Kbps / 85.6 Kbps
Status Indicator: Blue LED

Installation & Dimensions:

Dimensions (l x w x h): 106 × 42.5 × 22mm
Weight: 0.08kg (0.177lbs)
Wire Gauge (power cable): 0.5..1.5mm2 / AWG 28..16 or use supplied power cable
Recommended Fuse Size: 500mA @ 12V / 250mA @ 24V / 100mA @ 48V or use supplied inline fuse

In the Box:

GX LTE 4G (with integrated USB cable)
GSM 2G/3G/4G mini-rod antenna (for indoor use)
DC power cable (with inline fuse and terminal block)

Standrads:

Safety: EN 60335-1 / EN 60335-2-29 / EN 62368-1
Emission / Immunity: ECE R10-5
QM: EN 9001:2015

Please contact your dealer for any returns, repairs or support issues related to this product.

Click Here for Larger Image
Victron Energy Part Number: GSM100200400	Our SKU#: 100480
Our Price: $199.75 (MSRP: $235.00)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")	Related Items & Accessories are shown below...
