TRIDENT MARINE 5" ID 45-DEGREE EPDM BLACK RUBBER MOLDED WET EXHAUST ELBOW W/4 T-BOLT CLAMPS

Trident Marine 5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

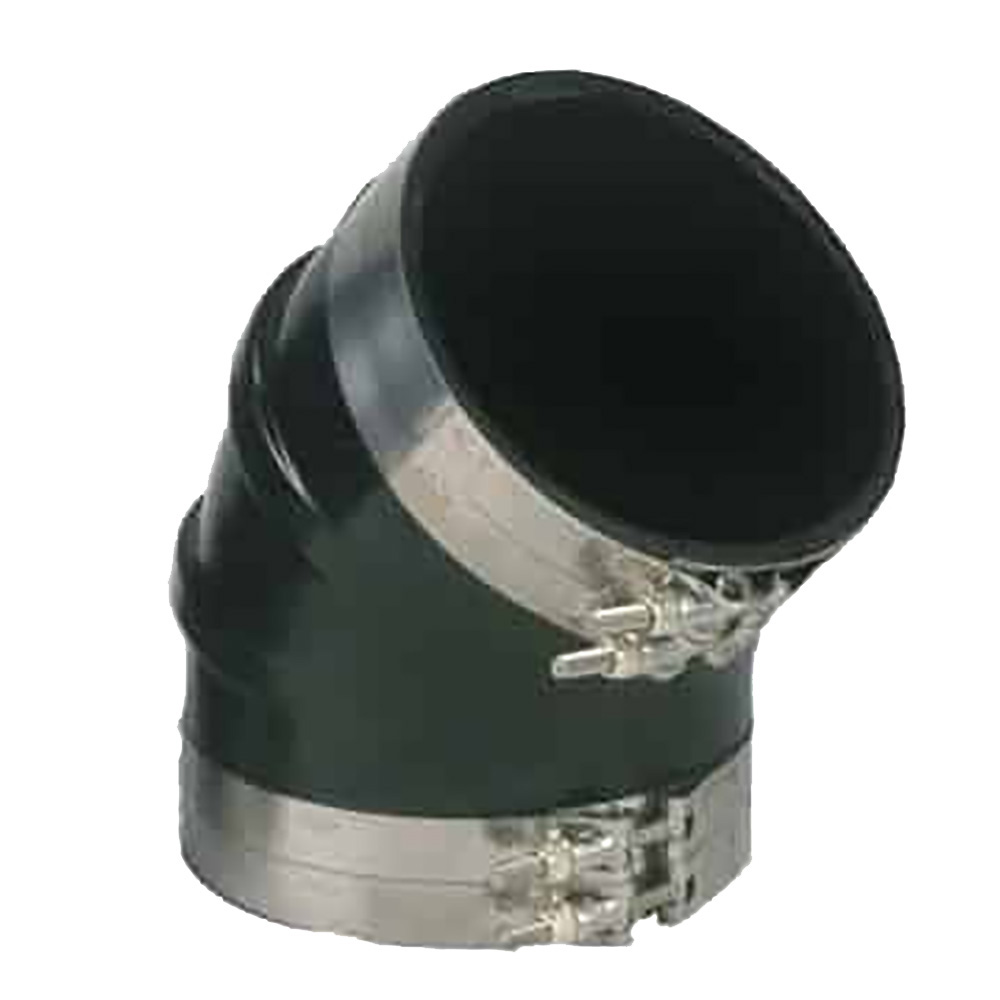

5" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

Four stainless steel clamps are included
This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
Black high-temp EDPM rubber

Construction:

Color: Black
Reinforcement: Reinforcing ribs on 6” I.D. and above
Temperature Range: up to 250°F (121°C)

Specifications:

Inner Diameter: (inch) 5” / (mm) 127
Outer Diamter: (inch) 5.5" / (mm) 139.7
A: (inch) 1.62” / (mm) 48.1
B: (inch) 1.62” / (mm) 48.1
C: (inch) 5.75” / (mm) 146
W: (inch) 0.25” / (mm) 6.35
Elbow Degree: 45 degrees
Weight: (Lb/Ea) 1.05 / (Kg/Ea) 0.478

Click Here for Larger Image
Trident Marine Part Number: TRL-545-S/S	Our SKU#: 100829
Our Price: $97.08 (MSRP: $157.35)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")
