VERATRON LINKUP INTELLIGENT BATTERY SENSOR GATEWAY, 12V, 500AH

** See Price In Cart **

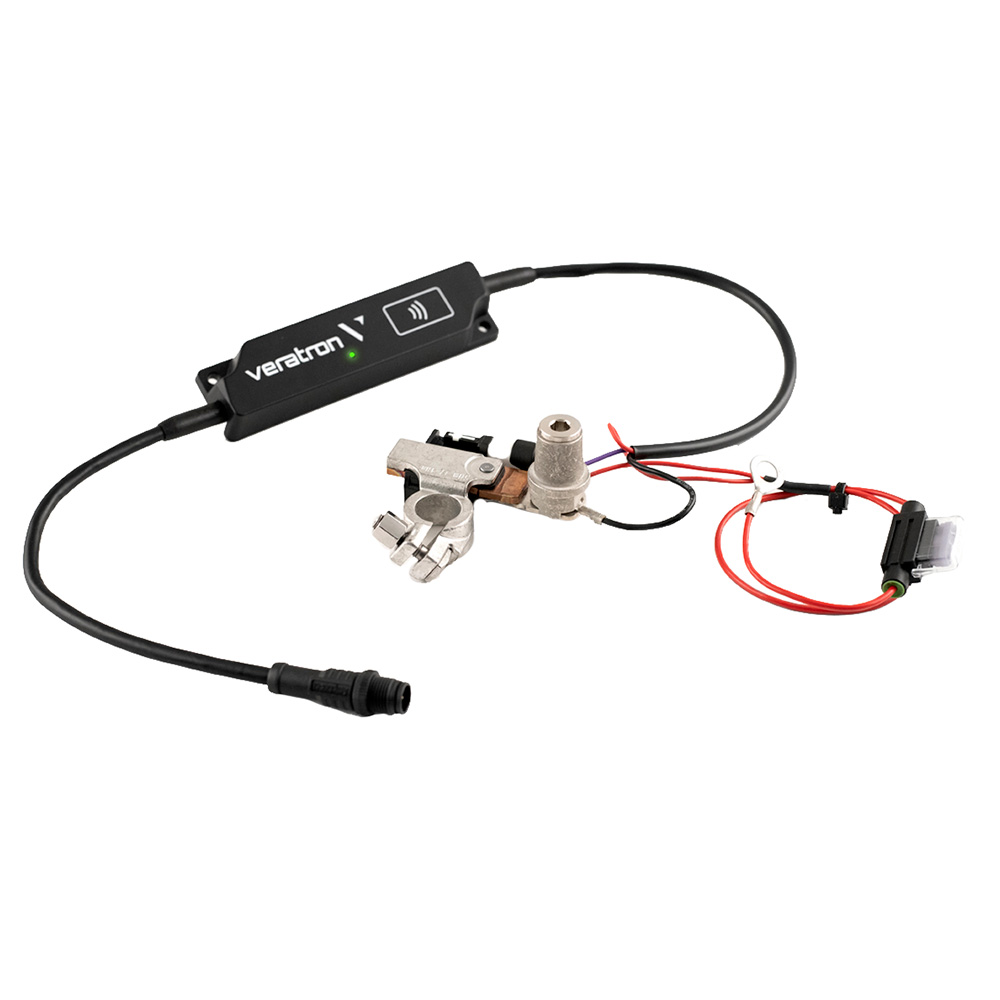

Veratron LinkUp Intelligent Battery Sensor Gateway - 12V - 500AH

LinkUp Intelligent Battery Sensor Gateway - 12V - 500AH

Easily installed LinkUp gateway modules replace the original wiring, delivering power to the LinkUp device and sensor from the NMEA 2000 backbone while still compliant with the NMEA 2000 certification. Thanks to their passive wireless receiver, the configuration is done in a snap using your mobile device, and the LinkUp Configurator app is available for Android and iOS devices. The sensor parameters are configured to type, instance, and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.

Features:

NMEA 2000® certified
Wireless configuration through companion mobile App
Status LED
Plug-and-Play installation and configuration

Specifications:

Operating voltage - 6-18V
Permanent load current - ±200A
Maximum current - ±1500A
Maximum battery capacity - 500Ah
Threaded GND bolt - M6
Power consumption - ≤ 15 mA (normal mode)
Output signal - NMEA 2000®
Dimensions - 125mm x 32mm (+cables)
Protection class - IP X9/K (LinkUp) IP6K7 (Sensor)
Operating temperature - -40°C to +115 °C
Flammability - UL94
Housing material - PC-FR
Compliance - CE, UKCA, Reach, RoHS, ISO8846:1990

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Click Here for Larger Image
Some items are "In-Cart" priced.
Veratron Part Number: B00042502	Our SKU#: 101795
Minimum Ad Price: $336.15 (MSRP: $373.50)
Out Of Stock ETA: Call/Contact Us for an ETA PRE-ORDER!	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")	Related Items & Accessories are shown below...
