NEWMAR 1-2-120 BATTERY ISOLATOR

Newmar 1-2-120 Battery Isolator

1-2-120 Battery Isolator

This heavy-duty isolator allows multiple batteries to charge automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt, negative ground DC systems. This model is a 120-amp alternator.

Features:

Conservatively rated diodes and a rustproof anodized aluminum heat sink case
Heavy duty construction
Rated for systems up to 48 volts DC, negative ground
Rust-proof anodized aluminum case
Stainless steel mounting hardware provided
Protective covers provided for terminals

Specifications:

Operating Temperature: -40 to +80°
Duty Cycle: Continuous rating to 50° C Derate linearly to 70% @ 80° C
Temp. Rise: 5° C at full rated current (mount vertically for optimum cooling)
Voltage Drop: 0.7V @ 50% load, 0.9V @ full load
Alternator Sources: 1
Battery Bank: 2
Max. Amperage Input Capacity: 120
Stud Terminal Size: 6mm
Dimensions (L x W x H): 6.5" x 4.5" x 3.1"
Weight: 3 lbs.

Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configuration

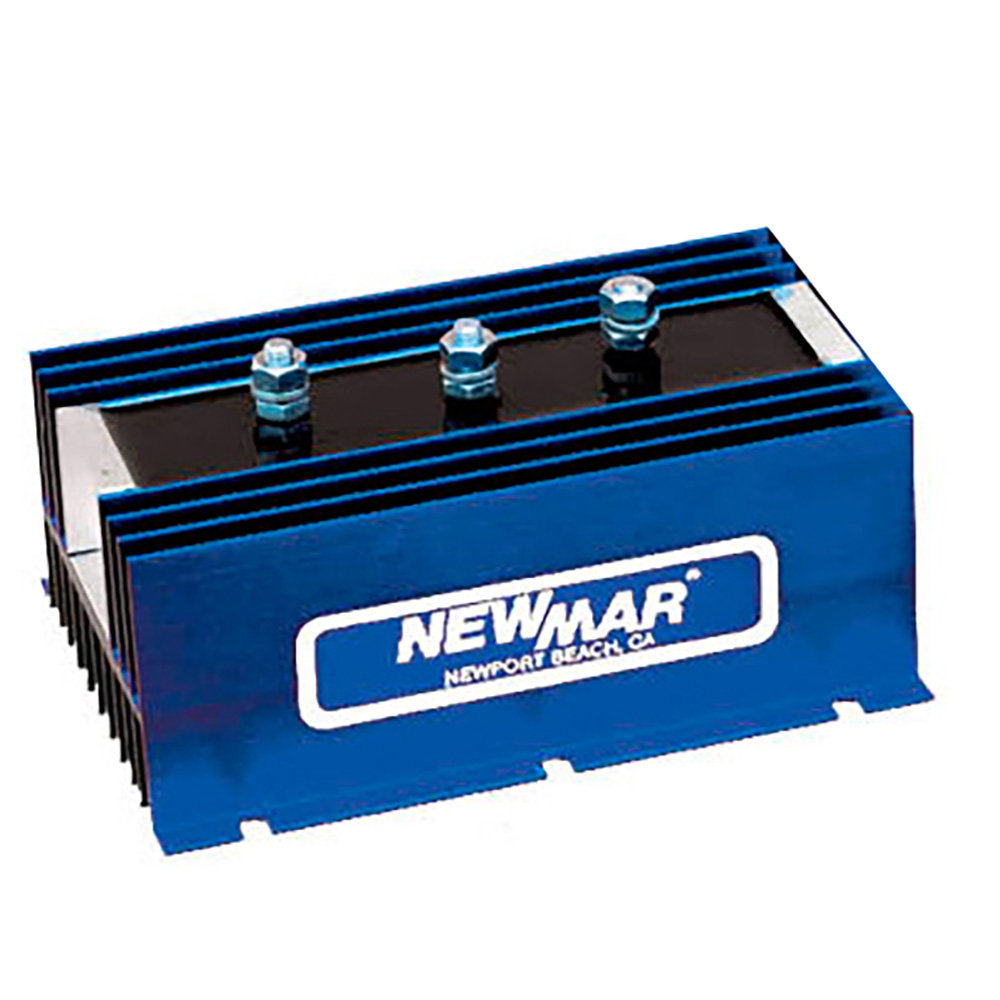

Click Here for Larger Image
Newmar Power Part Number: 1-2-120	Our SKU#: 102292
Our Price: $200.81 (MSRP: $255.00)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")
