PACER DT DEUTSCH RECEPTACLE REPAIR KIT, 14-18 AWG (8 POSITION)

Pacer DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)

DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

Packs include all parts needed to assemble a connector
One to two extra terminals
Cavity plugs to seal open circuits

Applications:

Wire-to-wire applications
Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

Ingress Protection (IP) Level: IP68 and IP6K9K
EU RoHS/ELV
Standard UL-94 Recognized

Characteristics:

Wedge locks ensure contact alignment and retention
Redundant Silicone Seals
Hand-insertable and removable contacts

Technical Specifications:

Number of Cavities: 8
Housing: Rectangular receptacle, plastic reinforced with glass fiber
Contact Size: 16 (13 amp)
Wire Size: 14 AWG
Holds Pin/Socket: Pins
Operating Temperature: -55°C to 125°C

Contents:

(1) 8 pos. receptacle
(1) 8 pos. wedge lock
(10) pins
(4) cavity plugs

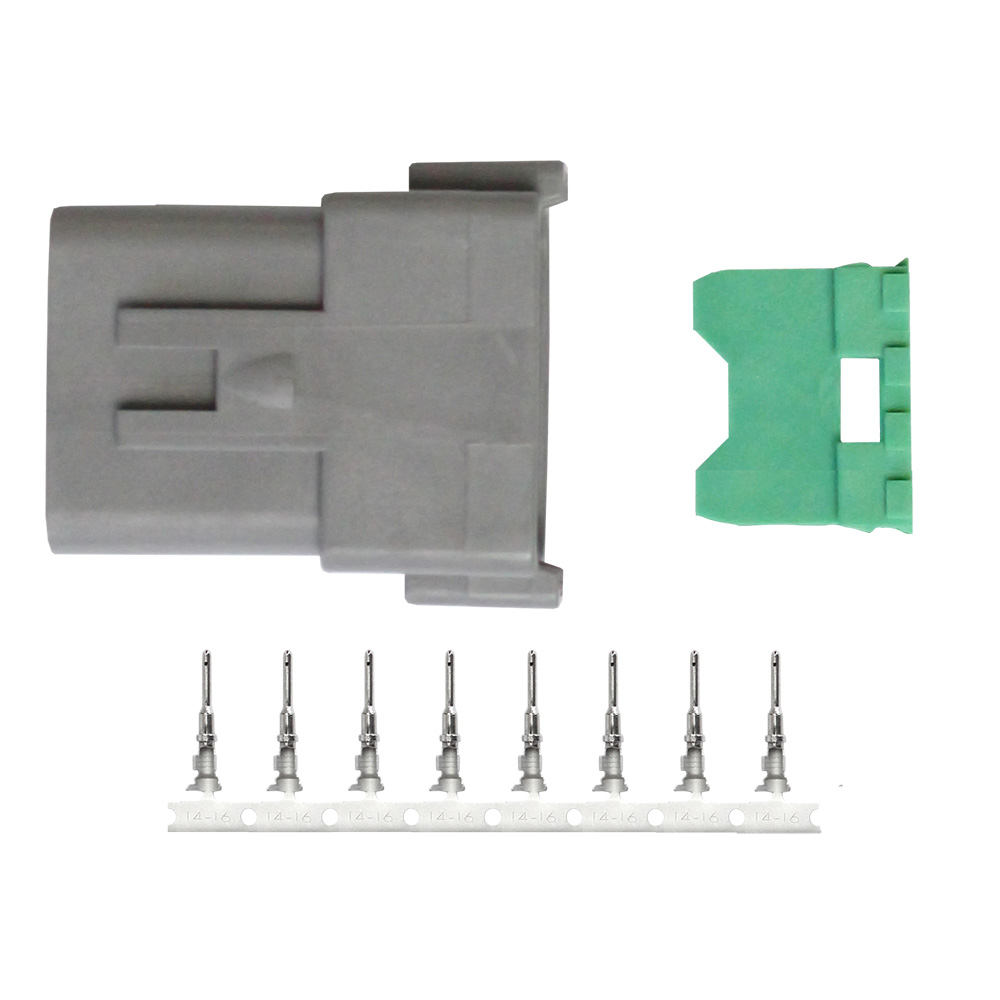

Click Here for Larger Image
Pacer Group Part Number: TDT04F-8RP	Our SKU#: 102499
Our Price: $16.40 (MSRP: $13.70)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")
