AIRMAR B75HW HIGH WIDE CHIRP TRANSDUCER, 20 DEGREE DEADRISE, 600W THRU HULL

Airmar B75HW High Wide Chirp Transducer - 20 Degree Deadrise, 600W Thru Hull

B75HW High Wide Tilted Element Chirp Transducer - 20 Degree Deadrise, 600W Thru Hull

Requires Mix and Match Cable for the appropriate Fishfinder it will be connected to.

Airmar’s low-profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high-frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75H transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 meters (350').

B75HW transmits across the following bandwidth: High frequency 150 to 250 kHz

The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. Fixed 20° tilted version for 16° to 24° hull deadrise

Features:

Depth and fast-response water-temperature sensor
600 W with a maximum depth performance of 106 m (350')
High frequency: 150 to 250 kHz
30° beamwidth
High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
Low-profile, thru-hull housing provides good resolution at speed when installed properly
Bronze housing for use on stepped, planing, or displacement hull
Exclusive Xducer ID® technology
Fixed 20° tilted version for 16° to 24° hull deadrise
Hole Size: 70 mm (2-13/16")
CHIRP-Ready Single-Band

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

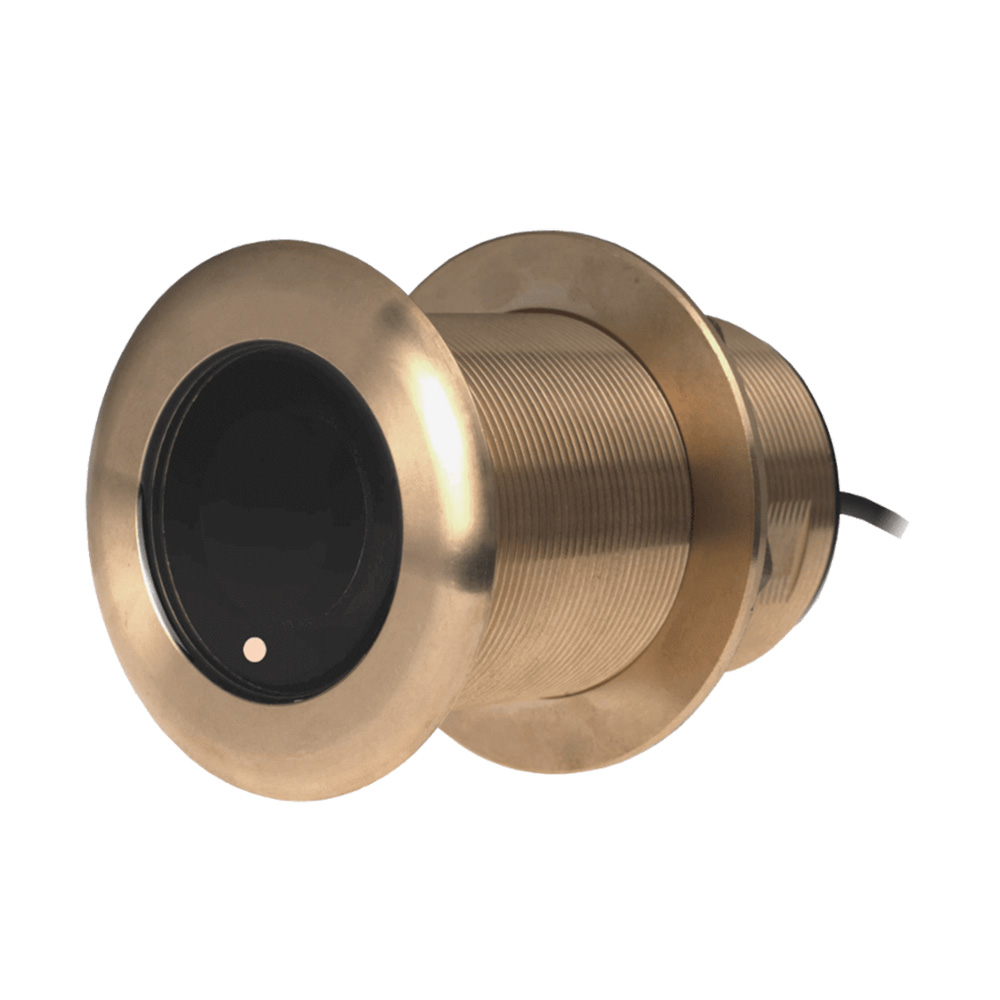

Click Here for Larger Image
Some items are "In-Cart" priced.
Airmar Part Number: B75C-20-HW-MM	Our SKU#: 103033
Minimum Ad Price: $1,079.99 (MSRP: $1,189.99)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")	Related Items & Accessories are shown below...
