ARCO MARINE ZEUS A275L TRANSIT ALTERNATOR W/REGULATOR

** This item is non-returnable. Make sure this is the correct part you need.**
ArcoMarine.com tech support: 800-722-2720

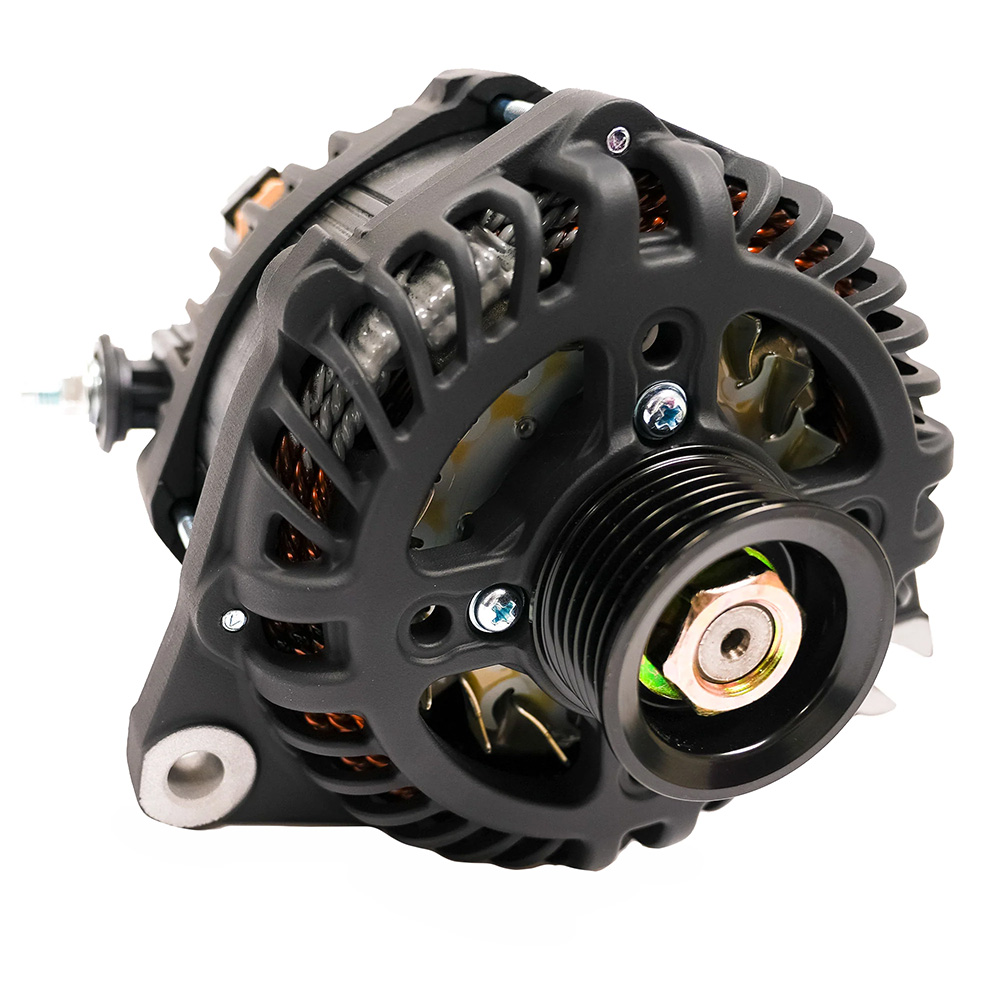

Zeus A275L Transit Alternator with Regulator

The highest power output alternator in its size/class.

Features:

Engineered for High Energy Production.
Suitable for Marine, RV, Military, and Commercial applications.
Rapidly charges large battery banks.
Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:

- Heat shedding coatings

- Rectifier located on housing exterior

- Dual cooling fans

- OEM Components

It is optimized for performance at idle speeds.
Reduces the need for a generator by creating additional power with your engine.
Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.
SAE J1171 Certified.
Made in the U.S.A.

Technical Specifications:

Voltage - 12v
Field Type - P
Rotor Poles - 16
Stator Size - 138mm
Frame Size - Large
Weight - 14.9 lbs/6.7 kg
Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
Output Voltage - 14.1v (Default)
Finish - (Black) Cerakote or E-coating
Cut-In RPM - 1,061 Alternator RPM
Maximum Alt RPM - 19,000
Battery Post - M8 Thread Post, Side Mount
Standard Pulley - 49K6 (6-groove, 49mm)
Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
Max Output (Cold, 9,000 RPM) - 311 Amps
Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Click Here for Larger Image
This Item is ON SALE/Specially Priced until: -while supplies last!
ARCO Marine Part Number: A275L-12-TR-IE-49K6	Our SKU#: 103951
Our Price: $710.64 (MSRP: $1,136.00)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")	Related Items & Accessories are shown below...
