GARMIN APK 10 AUTOPILOT KEYBOARD, VERTICAL

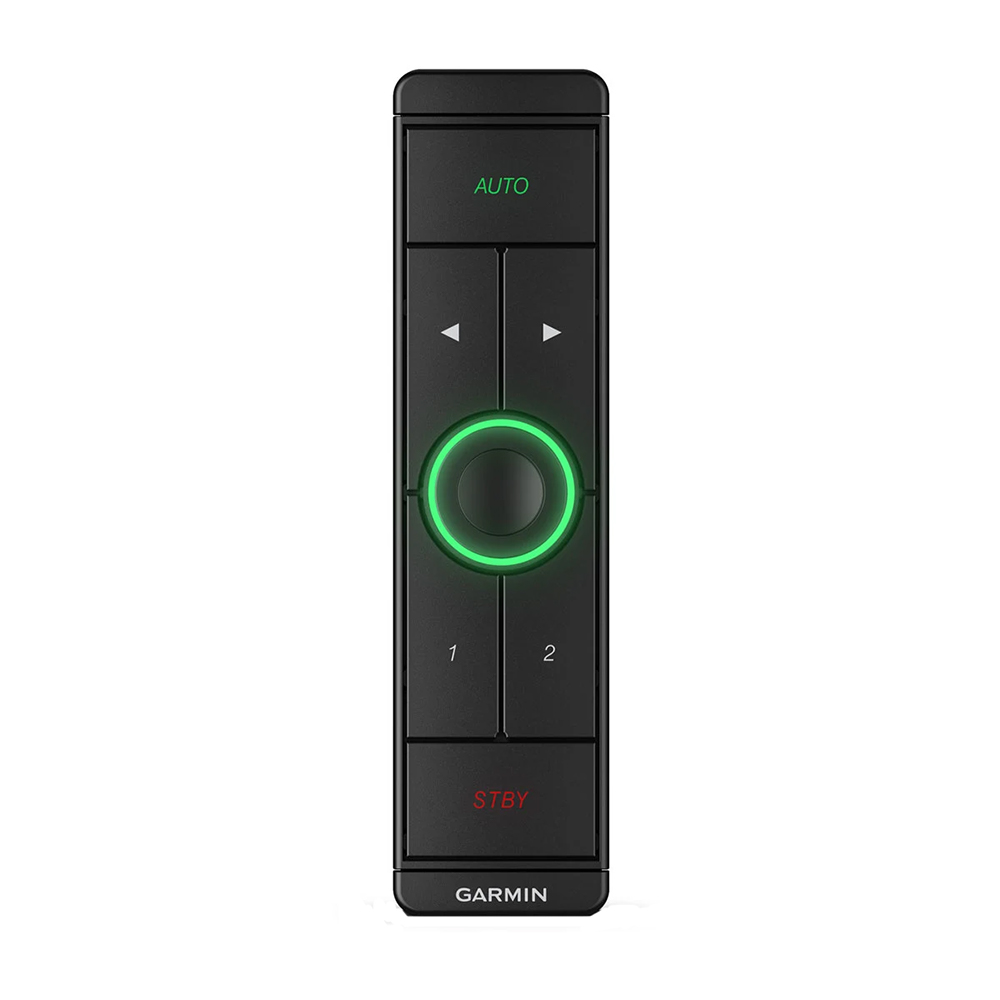

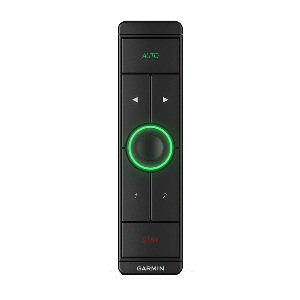

Garmin APK™ 10 Autopilot Keyboard - Vertical
APK™ 10 Autopilot Keyboard - Vertical
GAIN PRECISE CONTROL OF YOUR AUTOPILOT
Get easy-to-use control of your Reactor™ 40 autopilot, and put simple, intuitive knob and button activation, heading changes, and more at your fingertips.
Rotary Knob
The LED-encircled knob provides precise heading control and colored reference of autopilot status.
Autopilot Buttons
Dedicated engage and standby buttons make starting and stopping your autopilot easy.
Multipurpose Buttons
Add more autopilot control functions based on your vessel type and setup preferences.
Simple Installation
Connect to your NMEA® 2000 network with a single port and cable for integration and power.
Compact Design
A low-profile design matches the height of your GHC 50 instrument and GPSMAP® chartplotter. The APK 10 keypad accessory comes in horizontal and vertical mounting options to suit your new or existing helm.
In The Box:
- APK 10 autopilot keypad (vertical)
- Backbone/drop cable (2 m) and T-connector for the NMEA 2000® Network
- Mounting hardware (flush and surface)
- Documentation
Specifications:
- Dimensions (WxHxD): Flush mount: 1.6” x 6.2” x 0.28” (40.1 x 157.0 x 7.0 mm)Surface mount: 1.6” x 6.2” x 0.65” (41.1 x 158.0 x 16.4 mm)
- Weight: Vertical: 3.5 oz (100 g)
- Temperature range: From 5° to 158°F (from -15° to 70°C)
- Material: Fully-gasketed, high-impact plastic
- Water rating: IPX7
- Compass-safe distance: 4.5” (114 mm)
- Powered input: Powered supplied from the NMEA 2000® network
