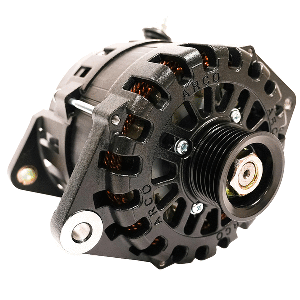

ARCO MARINE ZEUS A225S 3.15 ALTERNATOR W/ISOLATED GROUND (COMMON RAIL) & TERMINAL BLOCK

WE'RE READY TO DEAL! CLICK HERE TO EMAIL Your Name, Phone Number, and Wish List
or Call Us at 1-440-617-0025 and we'll Quote our Best Pricing!

Zeus A225S 3.15 Alternator with Isolated Ground (Common Rail) & Terminal Block

The highest power output alternator in its size/class.

Features:

Engineered for high energy production.
Suitable for marine, RV, military, and commercial applications.
Rapidly charges large battery banks.
Coolest operating temperatures for increased performance, running 8-20% cooler than incumbent alternators due to:
Heat shedding coatings
Rectifier located on housing exterior
Dual cooling fans
OEM components
Optimized for performance at idle speeds.
Reduces the need for a generator by creating additional power with your engine.
Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler for sustained amperage output.
Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
SAE J1171 Certified.
Models are available with an internal/external voltage regulator.
Proudly made in the U.S.A.

Technical Specifications:

Voltage - 12v
Field Type - P
Rotor Poles - 16
Stator Size - 130mm
Frame Size - Small
Weight - 12 lbs/5.4 kg
Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
Output Voltage - 14.1v (Default)
Finish - (Black) Cerakote or E-coating
Cut-In RPM - 1,061 Alternator RPM
Maximum Alt RPM - 19,000
Battery Post - M8 Thread Post, Side Mount
Standard Pulley - 49K6 (6-groove, 49mm)
Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
Max Output (Cold, 9,000 RPM) - 254 Amps
Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps
Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

Must be used on Yanmar Common Rail introduced after 2013 (JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, 4JH110)

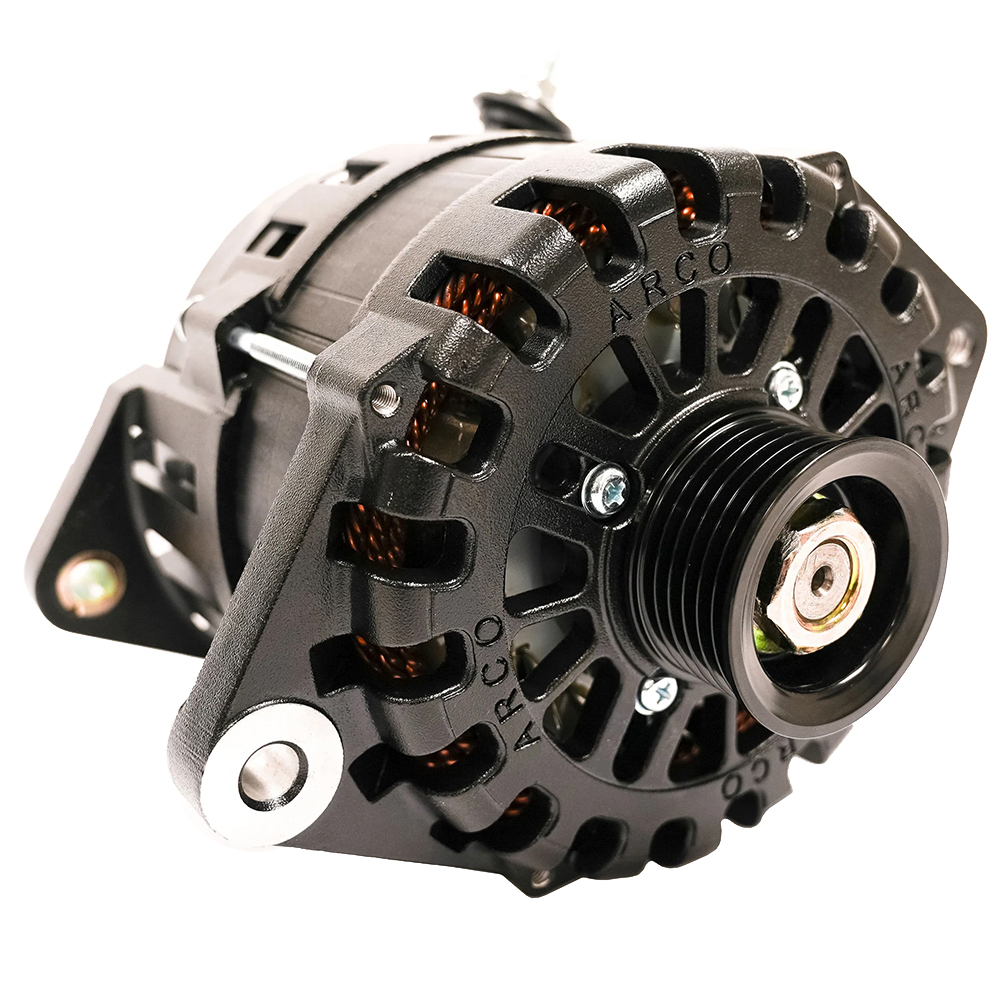

Click Here for Larger Image
ARCO Marine Part Number: 4013	Our SKU#: 107521
Our Price: $877.80 (MSRP: $999.90)
Out Of Stock ETA: Call/Contact Us for an ETA PRE-ORDER!	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")	Related Items & Accessories are shown below...
