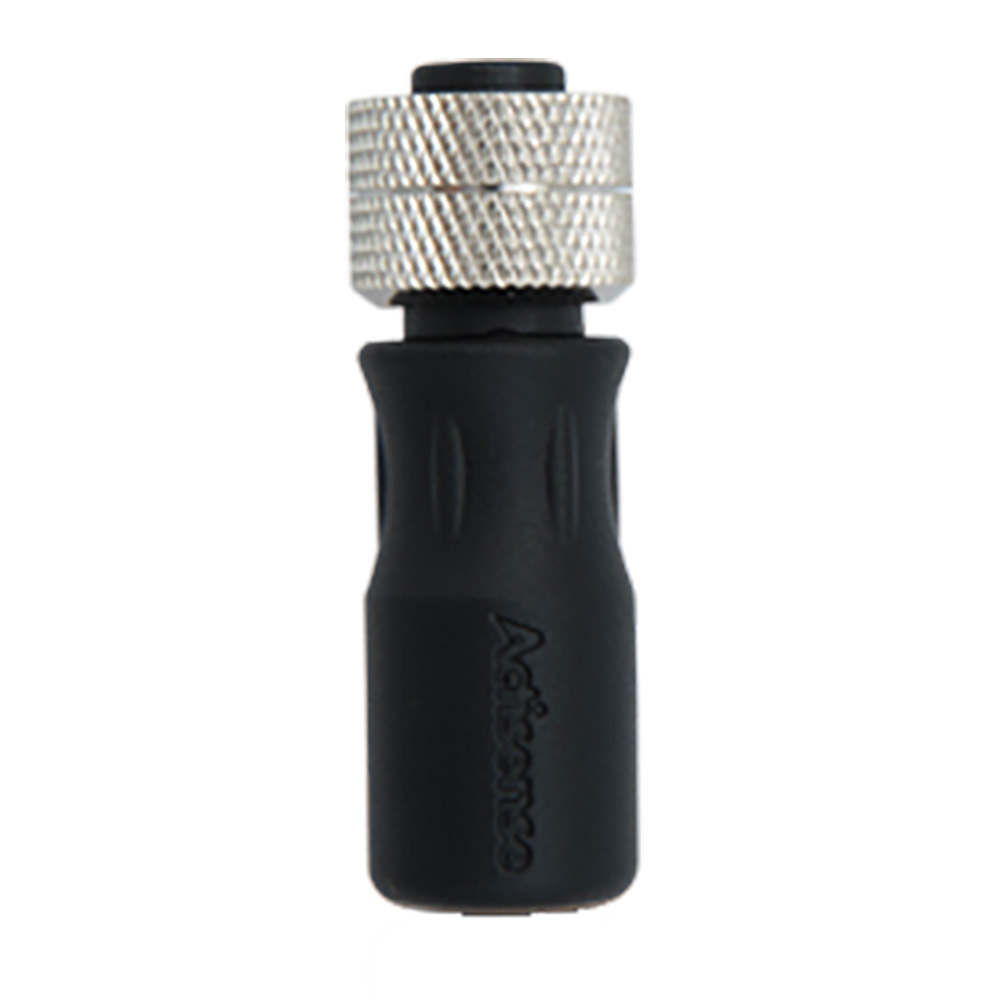

ACTISENSE NMEA2000 MICRO TERMINATOR, FEMALE

Actisense NMEA2000 Micro Terminator - Female

NMEA2000 Micro Terminator - Female

Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.

Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge

Technical Specifications:

Electrical

Rated Voltage (power pair) - 60VDC
Rated Current - 4A
Internal Termination Resistors - 120 Ω ± 1% 500mW

Mechanical

Female Contact - Phosphor bronze, gold plated
Contact Carrier - PA66 (30% Glass filled), black
Contact Polarization - Standard M12 -“A”- polarization
Mating Thread - M12
Screw Cap - Brass, nickel plated
O-Ring Seal - Rubber, Black
Housing - PVC, black
Weight - 15g

Approvals and Certifications

Protection - IP67 (when mated)
Operating Temperature - -25°C to +70°C
Storage Temperature - -40°C to +85°C

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Click Here for Larger Image
Actisense Part Number: A2K-TER-F	Our SKU#: 111805
Our Price: $23.71 (MSRP: $15.00)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")

ACTISENSE NMEA2000 MICRO TERMINATOR, FEMALE

Our Price: $23.71

In Stock

Actisense NMEA2000 Micro Terminator - Female
