BARTON SIZE 1 30MM PLAIN BEARING PULLEY BLOCK SINGLE SWIVEL & BECKET

Barton Size 1 30mm Plain Bearing Pulley Block Single Swivel & Becket

Size 1 30mm Plain Bearing Pulley Block Single Swivel & Becket

The Size 1 Plain Bearing Blocks have a 30mm (1 3/16") sheave. The range is designed with an internal steel frame for added strength and durability. Also available in ball bearing sheave options, the lightweight modern design is available in variations that allow for a multitude of uses on every size craft.

Suitable for up to 8mm (5/16") rope.

Specifications:

Weight: 51 g
Dimensions: 85 × 32 × 25 mm
Size: 1 (30MM)
Block Type: Swivel + Becket
No. of Sheaves: Single
Bearing Type: Plain
Sheave Size: 30mm x 12mm (1 3/16" x 15/32")
Max rope diameter: 8mm (5/16")
SWL: 355kg (782lbs)
Break load: 710kg (1565lbs)
Max rolling load (ball bearing blocks): 245kg (540lbs)

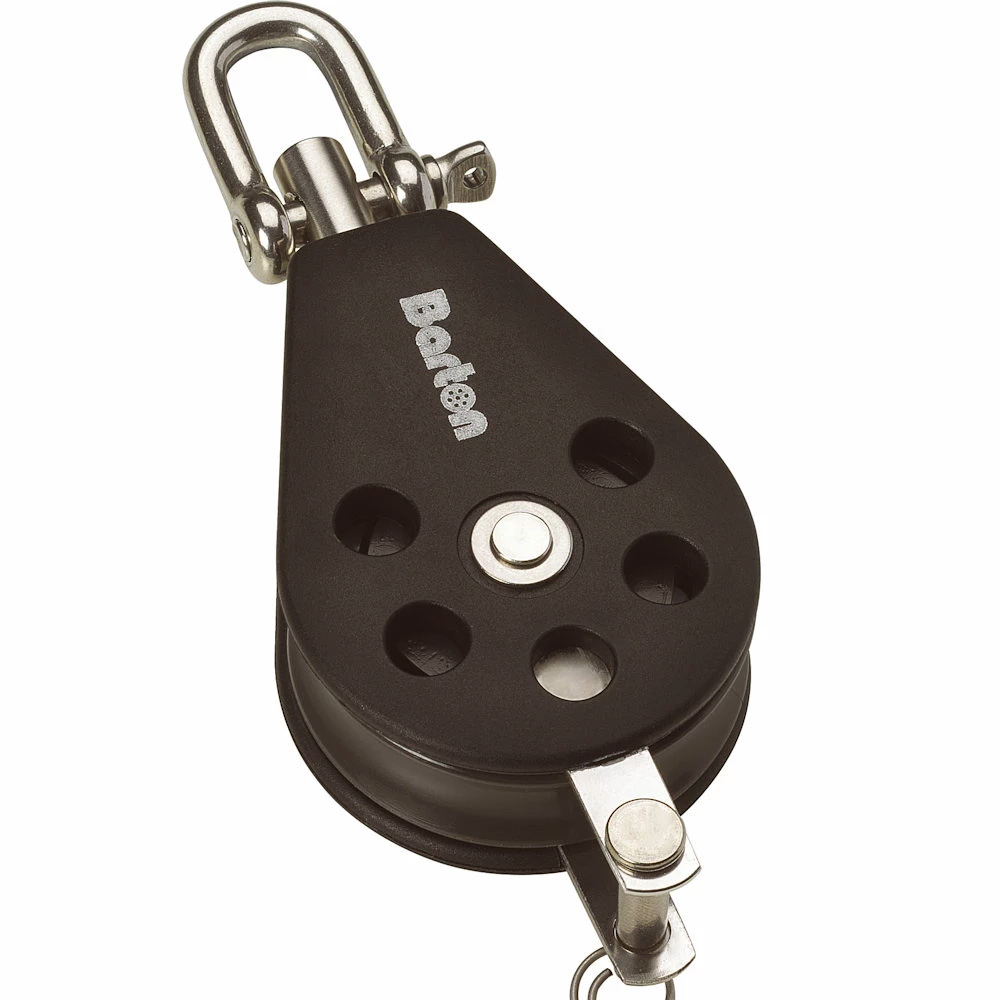

Click Here for Larger Image
Barton Marine Part Number: N01131	Our SKU#: 111834
Our Price: $29.96 (MSRP: $27.92)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")

BARTON SIZE 1 30MM PLAIN BEARING PULLEY BLOCK SINGLE SWIVEL & BECKET

Our Price: $29.96

In Stock

Barton Size 1 30mm Plain Bearing Pulley Block Single Swivel & Becket
