AIRMAR B164 BRONZE THRU-HULL, 50/200 KHZ, 1 KW, 0-DEG TILTED ELEMENT, REQ MIX-MATCH CABLE

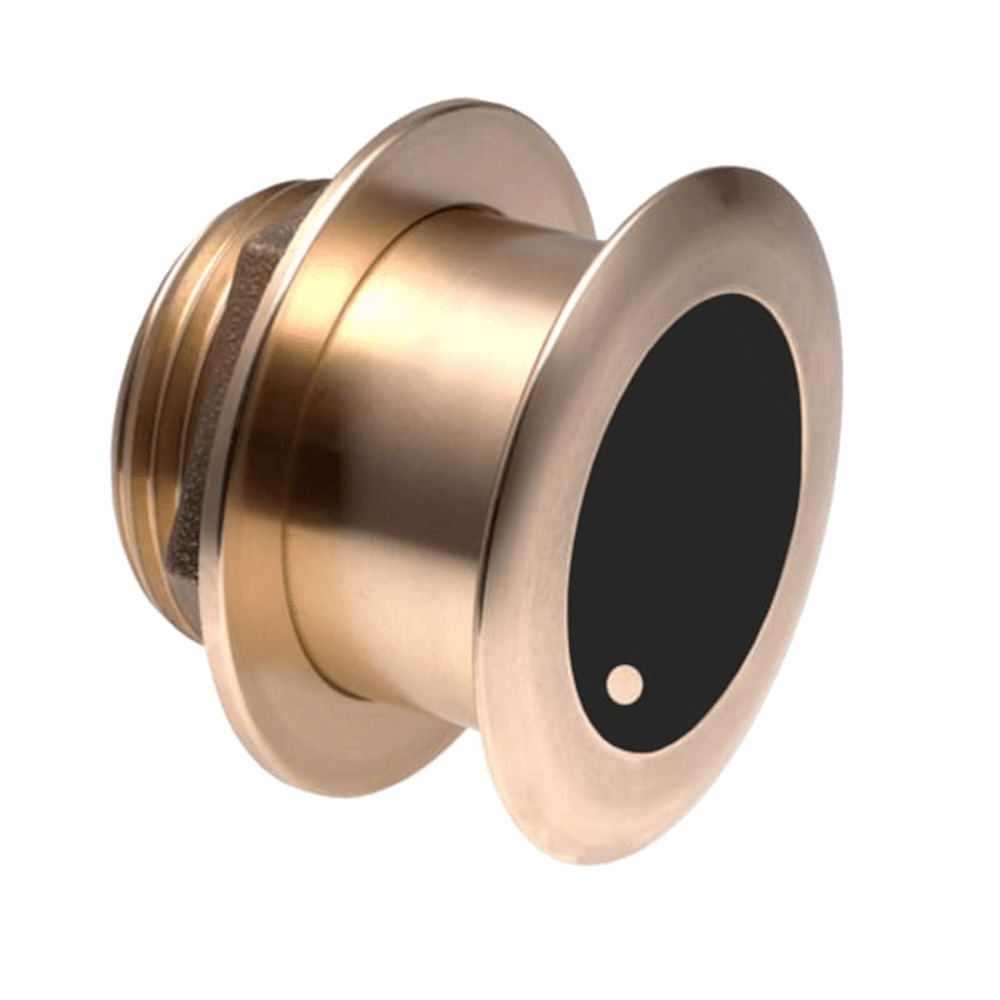

Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 0° Tilted Element - Requires Mix & Match Cable

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 0° Tilted Element - Requires Mix & Match Cable

0° tilted version for 0 to 7° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.

Features:

Depth and fast-response water-temperature sensing
1 kW of power
Dual-frequency elements:
50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
200 kHz with a 6° beamwidth for depth performance to 244 m (800')
Interfaces to any 600 W or 1 kW echo sounder
Engineered for center-console and trailered boats
Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
No effect on the boat’s running performance
Available in a stainless steel housing (SS164) for use in all hull materials
Patented Xducer ID® technology

Specifications:

Acoustic Window: Urethane
Cable-Length: 2 M (6.5')
Common Use: Leisure/Yachting, Fishing
Connector: Airmar 9-Pin (MM1)
Conventional Beam: 22°x20°/6°
Country of Origin: USA
Deadrise Range: 0° to 7°
Frequency Band: 50/200 kHz
Material: Bronze
Max Deadrise: Up to 7°
Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800')
Mix and Match Series: 9-Pin 1000 Watt
Mounting Style: Tilted Element Thru-Hull
Retractable housing: No
Sensor Connector: MM1
Single or Dual Frequency: Conventional Dual Frequency
Tilt Angle: 0°
Tilted Element: Yes
Weight: 2.7 kg (6 lbs)
Power Rating: 1 kW
Functions: Depth, Temperature
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 11 m (36')
Hole Size: 95 mm (3-3/4")
Usable Shaft Length: 71 mm (2.80")
Display Connector: Cable Required

Click Here for Larger Image
Some items are "In-Cart" priced.
Airmar Part Number: B164-0-MM	Our SKU#: 113441
Minimum Ad Price: $1,299.99 (MSRP: $1,429.99)
Out Of Stock ETA: Call/Contact Us for an ETA PRE-ORDER!	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")	Related Items & Accessories are shown below...
