BLUE SEA 5023 ST-BLADE BATTERY TERMINAL MOUNT FUSE BLOCK

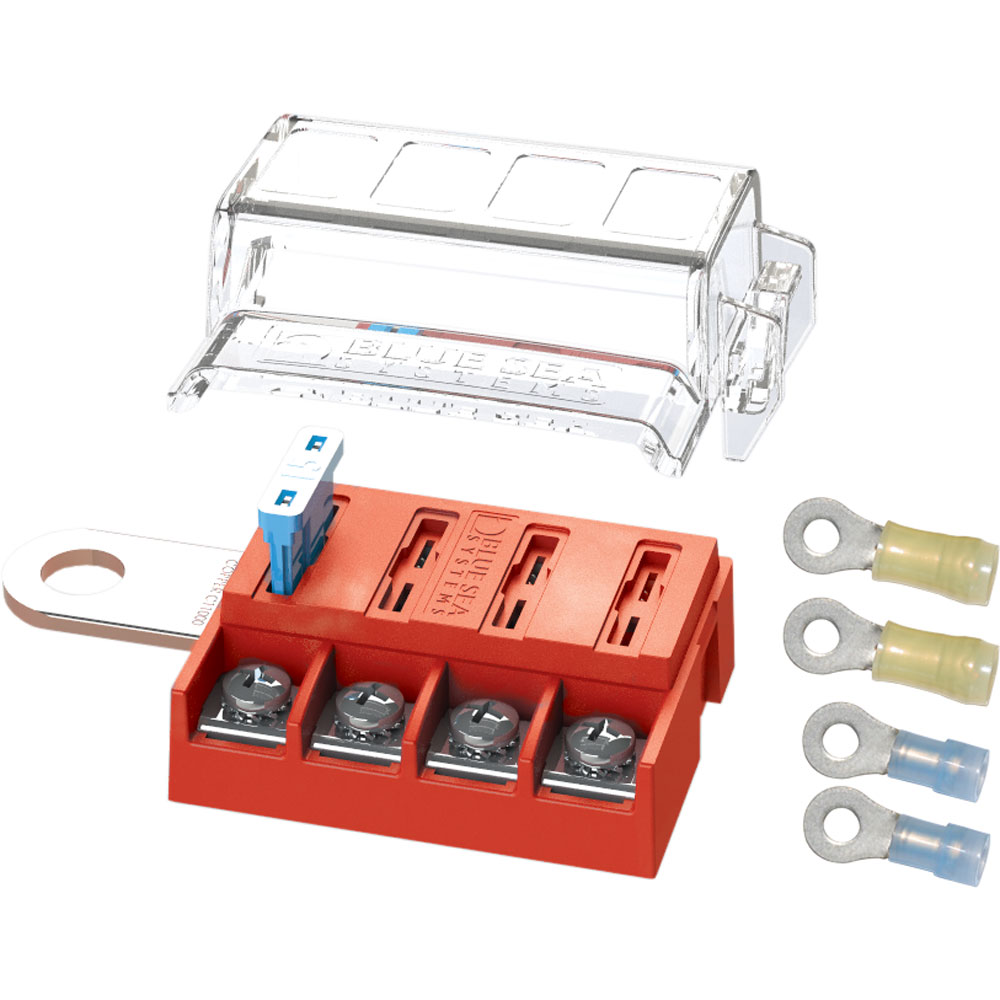

Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block
ST-Blade Battery Terminal Mount Fuse Block
Features:
Specifications:
Features:
- Easy to install 4 ATO/ATC fused circuits
- Mounts on the battery terminal stud
- Screw terminals for securing wires
- Four Nylon insulated ring terminals included
- Insulating cover included
- Accepts Small Format Circuit Labels
- Includes 1 fuse
Specifications:
- Circuits: 4
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: Clearance for 3/8" [M10] stud
- Screw Terminal Type: #8-32 Screws with captive star lock washer
