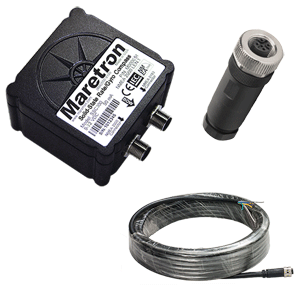

MARETRON SOLID-STATE RATE/GYRO COMPASS W/10M CABLE & CONNECTOR

Maretron Solid-State Rate/Gyro Compass w/10m Cable & Connector

Solid-State Rate/Gyro Compass w/10m Cable & Connector

Maretron's SSC300, implementing the second generation of Maretron's award-wining compass technology, is a solid state, rate gyro electronic compass that provides better than 0.7x heading accuracy through q45x of roll and pitch angle, and better than 1x roll and pitch accuracy in static conditions. Each SSC300 is factory calibrated for maximum accuracy. It delivers precise, reliable heading information ten times per second, plus vessel attitude including pitch and roll readings once per second. A micromachined 3-axis rate gyro is used, in conjunction with a 3-axis accelerometer, by advanced stabilization algorithms to provide accurate, stable readings during dynamically changing conditions such as hard turns or rough seas, making it an ideal heading sensor for autopilot or radar overlay applications.

Maretron's SSC300 is certified to the NMEA 2000 network standard and compatible with the NMEA 0183 digital interface standard. It connects directly with any NMEA 2000 network and with the optional NMEA 0183 cable accessory, with NMEA 0183 listeners to share information with navigational software, chart plotters, autopilots, and dedicated instrument displays - including Maretron's N2KView vessel monitoring system, or Maretron's DSM150 /DSM250 color graphics displays.

The SSC300 can be automatically calibrated for deviation. Its dynamic accuracy is improved with advanced digital filtering of the 3-axis magnetometer, 3-axis accelerometer and rate gyro.

Features:

Better than 0.7x heading accuracy in static conditions
Better than 1.5x heading accuracy in dynamic conditions
Better than 1x/second rate of turn in
Better than 1x pitch/roll accuracy
Three axis magnetometer, three axis rate gyro, and three axis accelerometer
Outputs NMEA 0183 and NMEA 2000 data simultanously
IP67 waterproof enclosure

Applications:

Navigation
Autopilot
Radar stabilization
Satellite antenna stabilization
Swing meter

Warning WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Click Here for Larger Image
Maretron Part Number: SSC300-01-KIT	Our SKU#: 57662
Our Price: $489.10 (MSRP: $540.00)
Out Of Stock ETA: On Order/Past Expected ETA PRE-ORDER!	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")	Related Items & Accessories are shown below...
