BLUE SEA 5045 ST BLADE COMPACT FUSE BLOCKS, 4 CIRCUITS W/COVER

Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

ST Blade Compact Fuse Blocks - 4 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

Compact common source fuse block
Accepts ATO® and ATC® fast acting blade fuses
Single side entry wiring
Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Small format standard and custom labels available

Specifications

Circuits:4
Maximum Amperage: 100A per block / 30A per circuit
Maximum Voltage:32V DC
Mounting: #8 Screw (M4)
Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

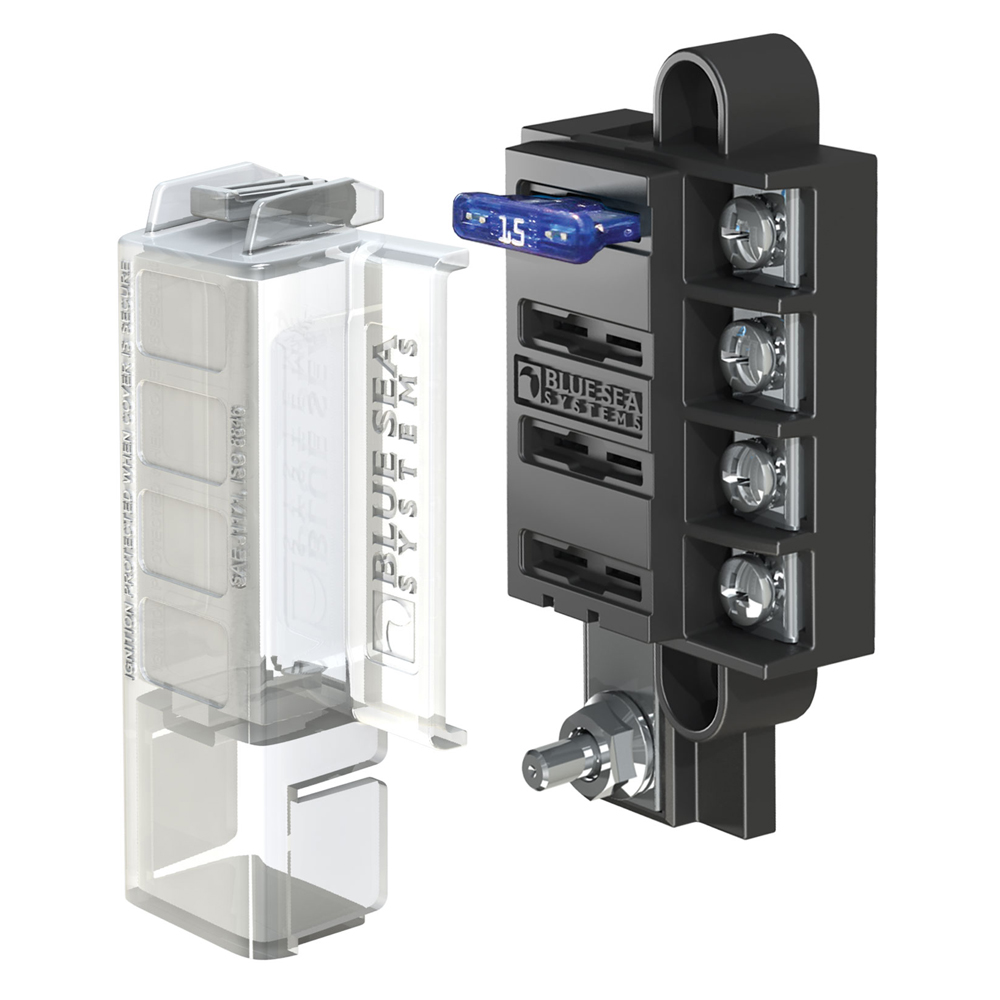

Click Here for Larger Image
Blue Sea Systems Part Number: 5045	Our SKU#: 58585
Our Price: $33.27 (MSRP: $37.99)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")
