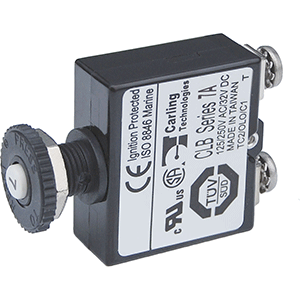

BLUE SEA PUSH BUTTON RESET ONLY SCREW TERMINAL CIRCUIT BREAKER, 7 AMPS

Push Button Reset Only Screw Terminal Circuit Breaker - 7 Amps

Features:

Branch circuit breakers (can also be used for 24-hour circuit protection)
Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
Compact design enables high density circuit protection configurations
Push-to-reset operation
"Trip Free" design cannot be held "ON" during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Specifications:

Amperage: 7A
Maximum Voltage: 32V DC
Mounting: Panel Mount 3/8-27 UNS
Circuit Breaker Type: Thermal trip, manual push-button reset only
Terminal Type: #8 Screw
Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Screw Terminal Torque: 6 in-lb (0.68 Nm)
Weight: 0.09lb (0.04 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Click Here for Larger Image
Blue Sea Systems Part Number: 2131	Our SKU#: 63009
Our Price: $16.96 (MSRP: $10.99)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")
