BLUE SEA 7197 A-SERIES WHITE TOGGLE CIRCUIT BREAKER, SINGLE POLE 2.5A

Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A

A-Series White Toggle Circuit Breaker - Single Pole 2.5A

Meets American Boat and Yacht Council (ABYC) standards
The industry standard circuit breaker for Blue Sea Systems" electrical panels
Combines swtiching and circuit protection into a single device
"Trip Free" design cannot be held "ON" during fault current condition

Specifications:

Amperage: 2.5A AC / 2.5A DC
Color: White
Actuator Style: Toggle
Poles: 1
Maximum Voltage: 250V AC / 65V DC
Circuit Breaker Type: Magnetic Hydraulic - trip free
Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC
Minimum Operating Temperature: -40° C
Maximum Operating Temperature: 85° C
Mounting Screw: #6-32 Stainless Steel
Mounting Screw Torque: 6 in-lb (0.68 Nm)
Screw Terminal Torque: 14 in-lb (1.58 Nm)
Switching Cycles: 10000
Terminal Screw: #10-32 Stainless Steel
Weight: 0.17lb (0.08 kg)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

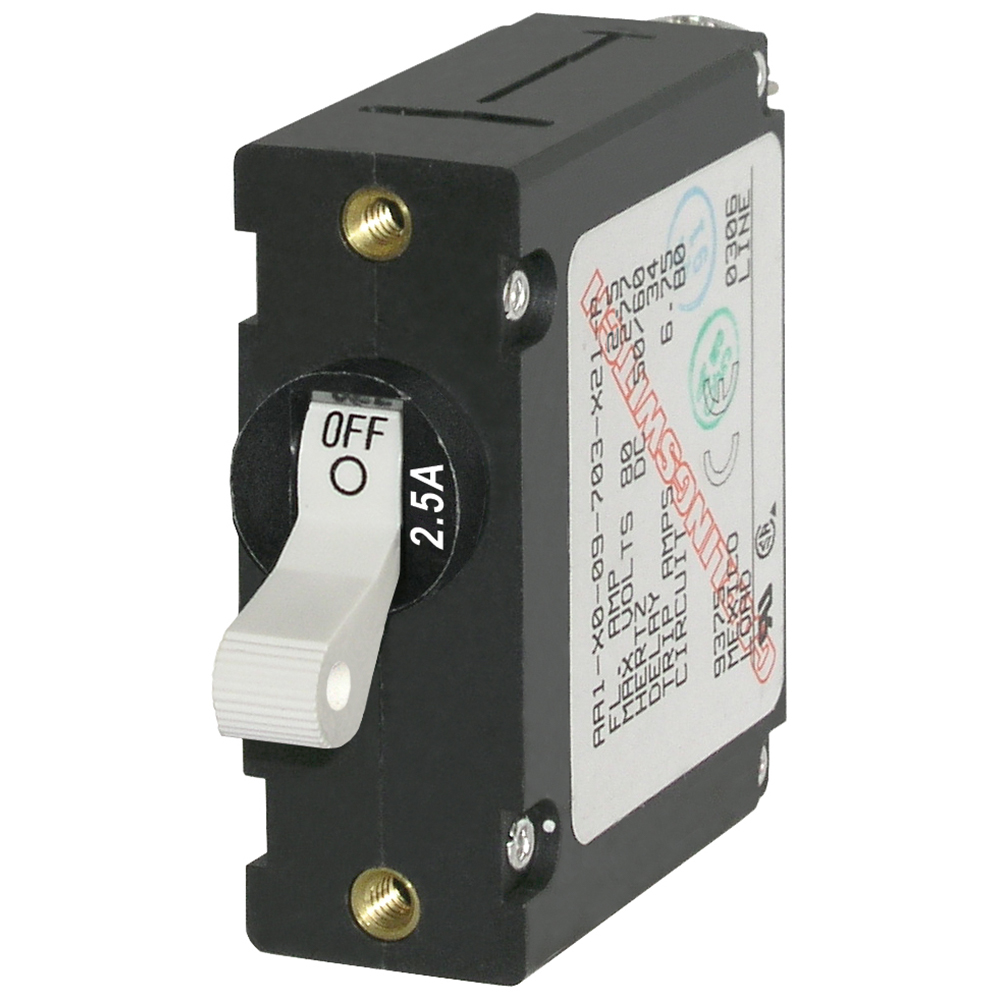

Click Here for Larger Image
Blue Sea Systems Part Number: 7197	Our SKU#: 64359
Our Price: $29.17 (MSRP: $30.99)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")

BLUE SEA 7197 A-SERIES WHITE TOGGLE CIRCUIT BREAKER, SINGLE POLE 2.5A

Our Price: $29.17

In Stock

Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A
