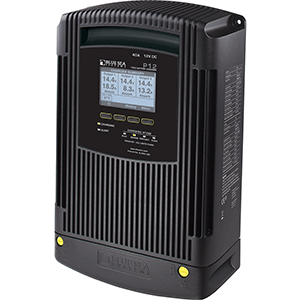

BLUE SEA 7532 P12 GEN2 BATTERY CHARGER, 40A, 3-BANK

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank

P12 Gen2 Battery Charger - 40A - 3-Bank

Features:

Four stage, three output, dry mount design, for use in harsh environments.
Rugged, finned aluminum case
PreFloat™ stage prevents over charging
Power factor corrected for efficient use of AC
Intuitive diagnostic screens
User defined charge profiles and customizable settings
Provides charging for up to three battery banks
Large, bright display
Multi-language: English, French, German, Italian, Spanish
Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
Battery Temperature Compensation - adjusts charge voltage based on battery temperature
AC over and under voltage shut down and automatic restart
Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
DC over voltage and reverse polarity protection
Surge and short circuit protection

Specifications:

Total Output Current: 40A
Input AC Current: 7.5A @ 100V AC / 3.75A @ 200V AC
Maximum Output Voltage: 16V DC
Nominal Voltage: 12V DC
Ignition Protected: Yes
Number of Outputs: 1 negative / 3 positive
Universal AC Input Voltage: 90-265V AC
AC Input Frequency: 45-65Hz
Output Voltage Accuracy: 0.05V
Typical Float Voltage:13.5V DC
Minimum Operating Temperature: -20° C
Maximum Operating Temperature: 70° C
Minimum Storage Temperature: -30° C
Maximum Storage Temperature: 80° C
Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
Recommended for Battery Bank Sizes: 440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31
Warranty: 5 Year
Height: 13.03" (330.96 mm)
Width: 8.46" (214.88 mm)
Depth: 3.66" (92.96 mm)
Weight: 13.00lb (5.9 kg)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Click Here for Larger Image
Blue Sea Systems Part Number: 7532	Our SKU#: 67227
Our Price: $733.40 (MSRP: $1,033.99)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")

BLUE SEA 7532 P12 GEN2 BATTERY CHARGER, 40A, 3-BANK

Our Price: $733.40

In Stock

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank
