SAMLEX 5A NON-ISOLATED STEP-DOWN 24VDC-12VDC CONVERTER

Samlex 5A Non-Isolated Step-Down 24VDC-12VDC Converter

5A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

Advanced switchmode design
Mount in almost any location
Compact and light weight
Reverse polarity protection
High efficiency
Cycle by cycle current limiting circuit
Overvoltage protection
Short circuit protection

Specifications:

Input: 20-32 VDC
Output: 13.8 VDC
Amps: 5 Amps
Weight: 0.4 (lbs)
Weight: 0.18 (kg)
Dimensions: 3.5 x 2.75 x 1.75 (in)
Dimensions: 8.9 x 7 x 4.4 (cm)
Warranty: 2 Year Limited

Applications:

Earth moving equipment
Heavy trucks
Buses
Marine vehicles
CB radios
12 Volt lighting systems
AM/FM sound systems

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

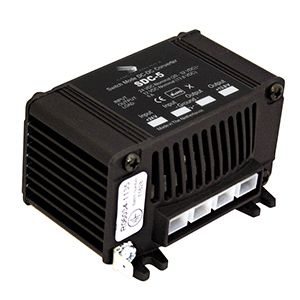

Click Here for Larger Image
Some items are "In-Cart" priced.
Samlex America Part Number: SDC-5	Our SKU#: 67247
Minimum Ad Price: $52.50 (MSRP: $65.60)
In Stock	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")
