SOUTHCO GRABBER CATCH LATCH, SIDE MOUNT, BLACK, PULL-UP FORCE 22N (5LBF)

SOUTHCO GRABBER CATCH LATCH, SIDE MOUNT, BLACK, PULL-UP FORCE 22N (5LBF)

Click Here for Larger Image
Southco Part Number:
C3-805 		Our SKU#: 67298

Our Price: $15.61
(MSRP: $10.99)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

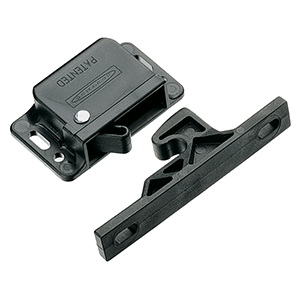

Southco Grabber Catch Latch - Side Mount - Black - Pull-Up Force 22N (5lbf)

Grabber Catch Latch - Side Mount - Black - Pull-Up Force 22N (5lbf)

Features:

  • Spring-loaded over-center latching
  • One assembly includes catch and keeper
  • Material and Finish: PC/ABS, black

Performance Details:

  • Operating temperature range: -30ºC (-20ºF) to 60ºC (140ºF)
  • Flammability rating: UL94-HB

Installation Notes:

  • Orient keeper to latch. The arrow on the keeper should point towards the cam. Mount to door and adjust for smooth latching.
  • Minimum distance from frame (or surface on which catch subassembly is mounted) to centerline of door hinge is 150 (5.9)
