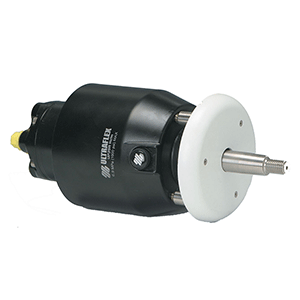

UFLEX UP28R REAR MOUNT HELM 1.7 CU. 3/4" TAPERED STAINLESS STEEL SHAFT

UFLEX UP28R REAR MOUNT HELM 1.7 CU. 3/4" TAPERED STAINLESS STEEL SHAFT

Click Here for Larger Image
Uflex USA Part Number:
UP28R 		Our SKU#: 75560

Our Price: $660.54
(MSRP: $1,010.16)
Out Of Stock
ETA: Call/Contact Us for an ETA
PRE-ORDER!
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman") 		Related Items & Accessories
are shown below...

Uflex UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft

UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft

Features:

  • Available in four different displacement sizes
  • Compact design
  • Ball bearing piston race
  • Built-in lock valve for positive rudder lock
  • Integral relief valve for over-pressure protection
  • 3/4” tapered stainless steel shaft
  • Easily accessible lock valve and shaft seal for replacement
  • Cast iron cylinder rotor for greater durability and longer life
  • 1/4" NPT fitting for 3/8" tube
  • Includes 90° adjustable fittings for 3/8” tube and white bezel
  • UP45R pump is ideal for double cylinder outboard applications
  • UP45 pump is available also for inboard application
  • X68 (optional) - 40894Z Chrome bezel
  • KITF (optional) - 39664Y Remote fill adapter

Specifications:

  • Mounting: Retro-cruscotto
  • Displacement/Revolution: 28 cc-1.7 cu in
  • # of Pistons: 5
  • Relief Valve Setting: 70 Bar - 1000 PSI
  • Maximum Wheel Diameter: 710mm - 28"
  • Weight: 5kg - 11 lbs.
