RAM MOUNT RAM DOUBLE U-BOLT RAIL MOUNT F/SMALLER RAILS

RAM Mount RAM® Double U-Bolt Rail Mount f/Smaller Rails

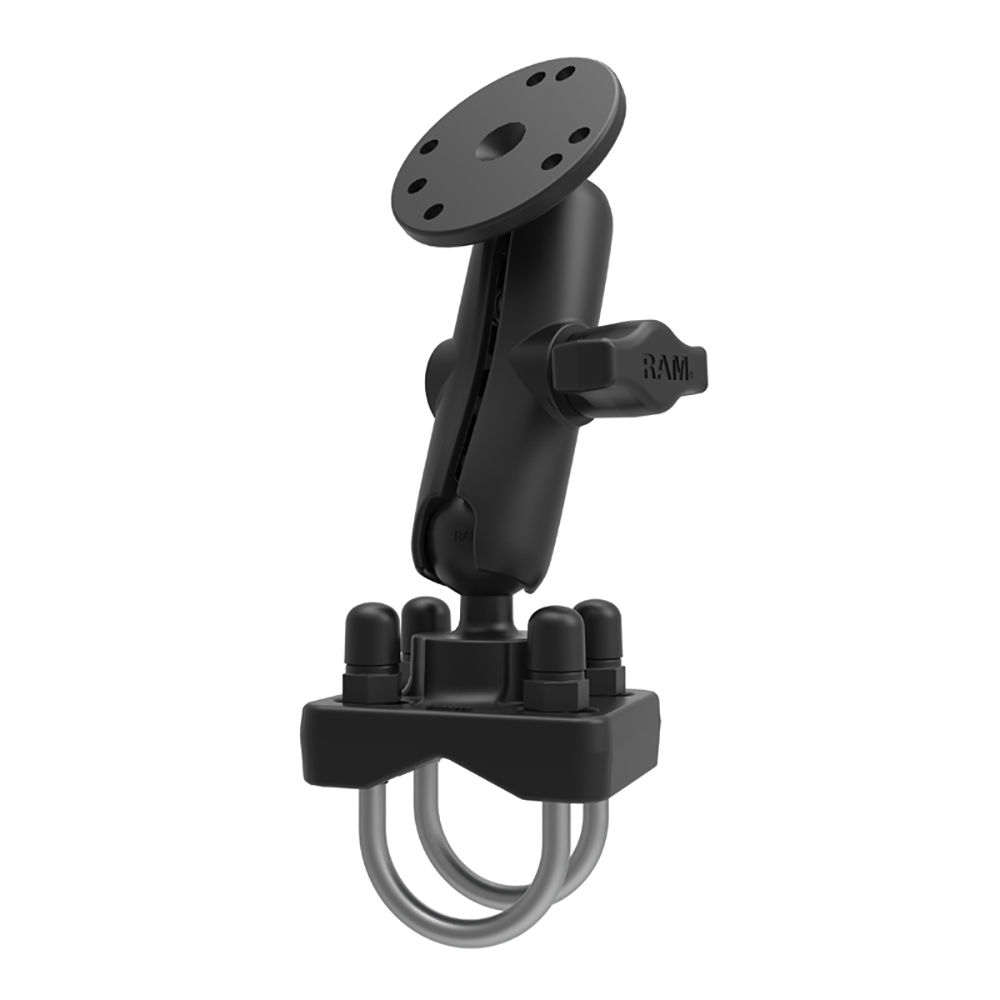

RAM® Double U-Bolt Rail Mount for Smaller Rails

The RAM-B-101-235U consists of a double socket arm, one round 2.5" diameter round base with the universal AMPS hole pattern and stainless steel double u-bolt base that will fit pipes from 1" to 1.25" in diameter. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Hardware Included:

(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps

Features:

CLAMP RANGE: 1" - 1.25" diameter
SOCKET-TO-SOCKET LENGTH: 3"
HOLE PATTERN: 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE: B Size (1")
WEIGHT CAPACITY: 2 lbs
MATERIAL: Marine-grade aluminum

Click Here for Larger Image
Some items are "In-Cart" priced.
RAM Mounting Systems Part Number: RAM-B-101-235U	Our SKU#: 87914
Minimum Ad Price: $47.99 (MSRP: $53.99)
Out Of Stock ETA: Call/Contact Us for an ETA PRE-ORDER!	Quantity:
Condition: BRAND NEW (NOT a "Refurb" or "Reman")
