WICHARD SELF-LOCKING LONG D SHACKLE, DIAMETER 8MM, 5/16"

WICHARD SELF-LOCKING LONG D SHACKLE, DIAMETER 8MM, 5/16"

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
1214W 		Our SKU#: 93098
Minimum Ad Price: $40.68
(MSRP: $47.86)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

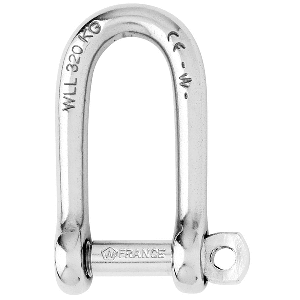

Wichard Self-Locking Long D Shackle - Diameter 8mm - 5/16"

Self-Locking Long D Shackle - Diameter 8mm - 5/16"

Features:

  • Self-locking long shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications
  • CE Marking and batch number

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1190
  • Breaking load (lb) 5950
  • Weight (lb) 0.146

Dimensions (see 2nd image):

  • A (inch) 1-49/64"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • F (inch) 2-33/64"
  • G (inch) 1-39/64"
