WICHARD SELF-LOCKING TWISTED SHACKLE, DIAMETER 8MM, 5/16"

WICHARD SELF-LOCKING TWISTED SHACKLE, DIAMETER 8MM, 5/16"

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
1224W 		Our SKU#: 93101
Minimum Ad Price: $45.12
(MSRP: $53.08)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

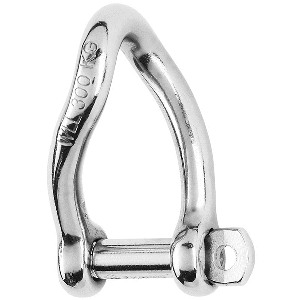

Wichard Self-Locking Twisted Shackle - Diameter 8mm - 5/16"

Self-Locking Twisted Shackle - Diameter 8mm - 5/16"

Features:

  • Self-locking twisted shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • Breaking load (lb) 6610
  • Weight (lb) 0.148

Dimensions (see 2nd image):

  • A (inch)1-37/64"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • F (inch) 2-23/64"
