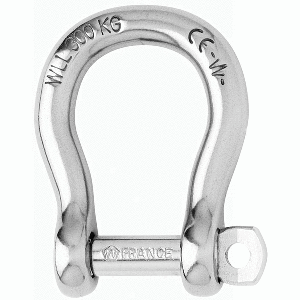

WICHARD SELF-LOCKING BOW SHACKLE, DIAMETER 8MM, 5/16"

Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16"

Self-Locking Bow Shackle - Diameter 8mm - 5/16"

Features:

Self-locking bow shackle forged in grade 316L stainless steel
The pin is locked into one of the indentations
No risks of loosening due to vibrations
Outstanding working and breaking loads
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number

Applications:

To be used when ample room is required
Possibility to attach several lines or cables

Specifications:

Materials 316 stainless steel grade
Working load (lb) 2200
WLL (lb) 1190
Breaking load (lb) 5950
Weight (lb) 0.15

Dimensions (see 2nd image):

A (inch) 1-29/64"
B (inch) 5/8"
C (inch) 5/16"
D (inch) 5/8"
D diameter (inch) 5/16"
E (inch) 9/32"
M (inch) 1-17/32"
