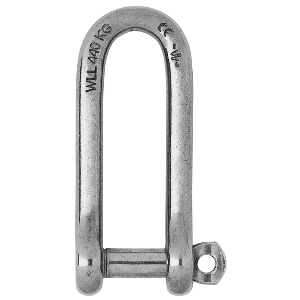

WICHARD CAPTIVE PIN LONG D SHACKLE, DIAMETER 10MM, 13/32"

WICHARD CAPTIVE PIN LONG D SHACKLE, DIAMETER 10MM, 13/32"

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
1415W 		Our SKU#: 93119
Minimum Ad Price: $107.53
(MSRP: $126.51)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32"

Captive Pin Long D Shackle - Diameter 10mm - 13/32"

Features:

  • Captive pin long "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • WLL (lb) 2290
  • Breaking load (lb) 11460
  • Weight (lb) 0.388

Dimensions (see 2nd image):

  • A (inch) 3-5/64"
  • B (inch) 25/32"
  • C (inch) 7/16"
  • D (inch) 53/64"
  • D diameter (inch) 25/64"
  • E (inch) 25/64"
  • F (inch) 4-1/16"
  • G (inch) 2-1/8"
