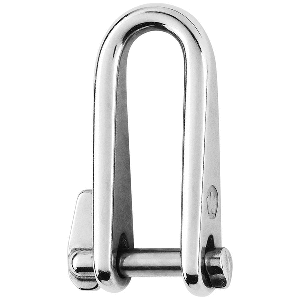

WICHARD KEY PIN SHACKLE, DIAMETER 5MM, 3/16"

WICHARD KEY PIN SHACKLE, DIAMETER 5MM, 3/16"

Click Here for Larger Image
Wichard Marine Part Number:
1432W 		Our SKU#: 93123

Our Price: $32.59
(MSRP: $36.60)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard Key Pin Shackle - Diameter 5mm - 3/16"

Key Pin Shackle - Diameter 5mm - 3/16"

Features:

  • Key pin shackle forged in grade 316L stainless steel
  • Opening and closing is done simply by rotating the pin half a turn
  • No risk to lose the pin as it remains attached
  • Outstanding working and breaking loads

Applications:

  • Perfect product for halyards or applications requiring to open/close the shackle often

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 880
  • Breaking load (lb) 2200
  • Weight (lb) 0.068

Dimensions (see 2nd image):

  • A (inch) 1-29/64"
  • B (inch) 33/64"
  • C (inch) 13/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 5/32"
  • F (inch) 1-59/64"
  • G (inch) 1-7/32"
