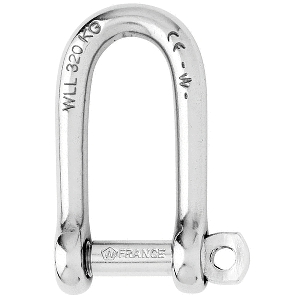

WICHARD SELF-LOCKING LONG D SHACKLE, 10MM DIAMETER, 13/32"

WICHARD SELF-LOCKING LONG D SHACKLE, 10MM DIAMETER, 13/32"

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
1215W 		Our SKU#: 97630
Minimum Ad Price: $67.60
(MSRP: $79.53)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard Self-Locking Long D Shackle - 10mm Diameter - 13/32"

Self-Locking Long D Shackle - 10mm Diameter - 13/32"

Features:

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 3350 / (kg) 1520
  • WLL: (lb) 1890 / (kg) 860
  • Breaking load: (lb) 9470 / (kg) 4300
  • Weight: (lb) 0.282 / (kg) 4300

Dimensions:

  • A: (inch) 2 11/64" / (mm) 55
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 3/4" / (mm) 19
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 23/64" / (mm) 9
  • G: (inch) 3 7/64" / (mm) 79
  • H: (inch) 2 3/64" / (mm) 52

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual
