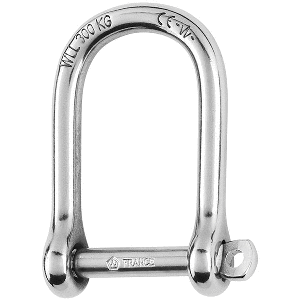

WICHARD SELF-LOCKING LARGE OPENING SHACKLE, 8MM DIAMETER, 5/16"

WICHARD SELF-LOCKING LARGE OPENING SHACKLE, 8MM DIAMETER, 5/16"

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
1264W 		Our SKU#: 97636
Minimum Ad Price: $62.36
(MSRP: $73.37)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 1780 / (kg) 810
  • WLL: (lb) 1190 / (kg) 540
  • Breaking load: (lb) 5950 / (kg) 2700
  • Weight: (lb) 0.148 / (g) 67

Dimensions:

  • A: (inch) 2 1/4" / (mm) 57
  • B: (inch) 1 17/64" / (mm) 32
  • C: (inch) 5/16" / (mm) 8
  • D: (inch) 43/64" / (mm) 17
  • D diameter: (inch) 5/16" / (mm) 8
  • E: (inch) 5/16" / (mm) 8
  • F: (inch) 3 1/32" / (mm) 77
  • G: (inch) 2 1/4" / (mm) 57

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual
