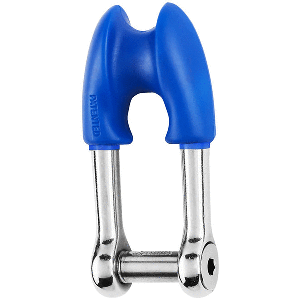

WICHARD THIMBLE SHACKLE ALLEN HEAD PIN, 10MM DIAMETER, 13/32"

WICHARD THIMBLE SHACKLE ALLEN HEAD PIN, 10MM DIAMETER, 13/32"

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
1395W 		Our SKU#: 97649
Minimum Ad Price: $157.84
(MSRP: $185.69)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

Features:

  • Thimble shackle with allen head pin forged in grade 316L stainless steel
  • Allows a rope to be spliced without adding and additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 16 mm

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 3350 / (kg) 1520
  • Breaking load: (lb) 11020 / (kg) 5000
  • Weight: (lb) 0.313 / (g) 142

Dimensions:

  • A: (inch) 2 1/64" / (mm) 51
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 25/32" / (mm) 20
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 5/16" / (mm) 8
  • F: (inch) 3 25/32" / (mm) 96
  • G: (inch) 1 39/64" / (mm) 41

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
