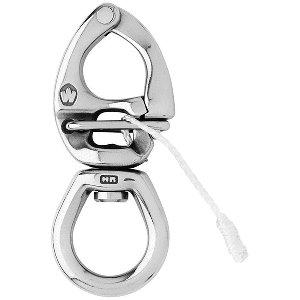

WICHARD HR QUICK RELEASE SNAP SHACKLE WITH LARGE BAIL, 90MM LENGTH, 3-35/64"

WICHARD HR QUICK RELEASE SNAP SHACKLE WITH LARGE BAIL, 90MM LENGTH, 3-35/64"

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
2774W 		Our SKU#: 97664
Minimum Ad Price: $176.53
(MSRP: $207.68)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64"

HR Quick Release Snap Shackle With Large Bail - 90mm Length - 3-35/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 4400 / (kg) 2000
  • Weight: (lb) 0.22 / (g) 100

Dimensions:

  • A; (inch) 5/8" / (mm) 16
  • B: (inch) 29/32" / (mm) 23
  • Length: (inch) 3 35/64" / (mm) 90

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
