WICHARD U-BOLT PAD EYE, 8MM DIAMETER, 5/16", 100MM LENGTH, 3-15/16"

WICHARD U-BOLT PAD EYE, 8MM DIAMETER, 5/16", 100MM LENGTH, 3-15/16"

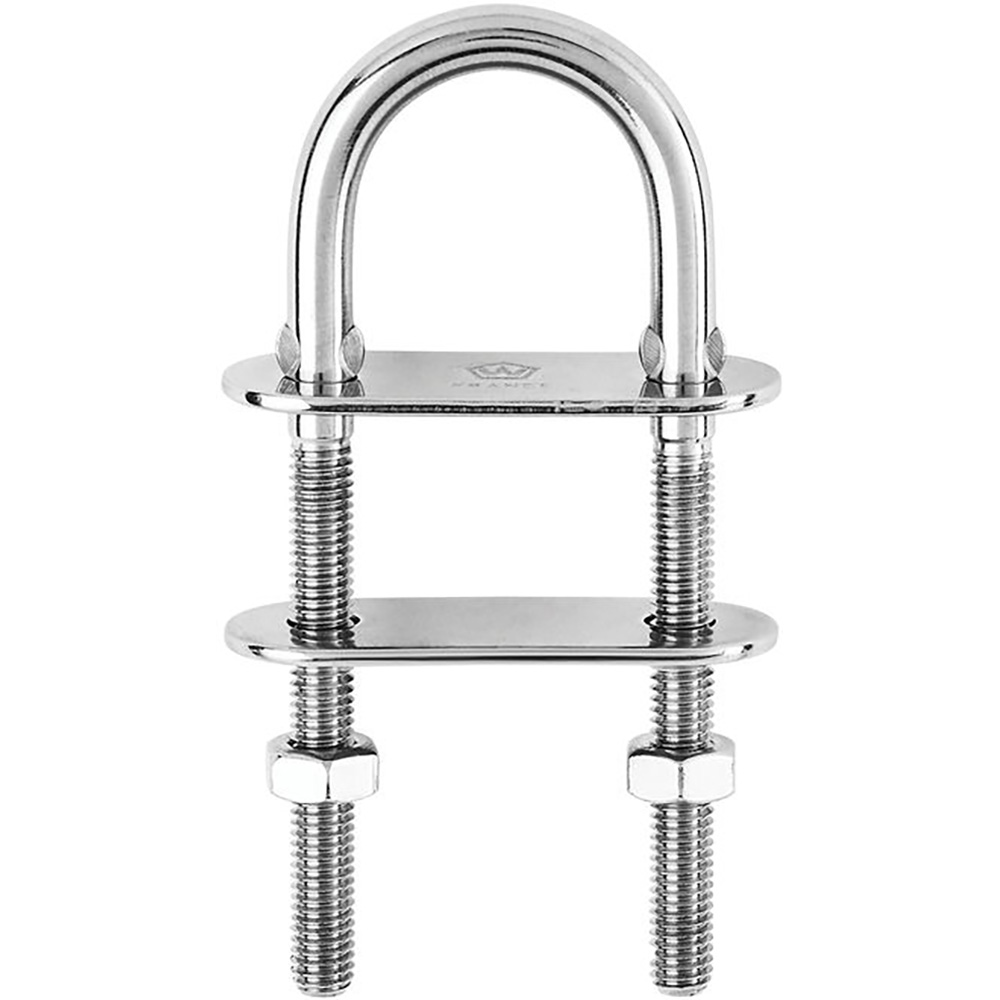

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
6524W 		Our SKU#: 97691
Minimum Ad Price: $38.63
(MSRP: $45.45)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"

Features:

  • Entirely drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 18 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 10580 / (kg) 4800
  • Weight: (lb) 0.28 / (g) 127

Dimensions:

  • A: (inch) 1 27/64" / (mm) 36
  • B: (inch) 1 3/16" / (mm) 30
  • C: (inch) 2 23/64" / (mm) 60
  • D diameter: (inch) 5/16" / (mm) 8
  • Length: (inch) 3 15/16" / (mm) 100

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
