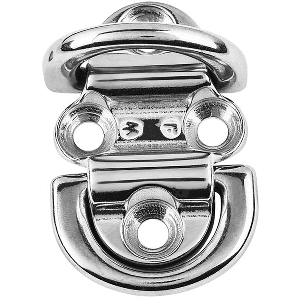

WICHARD DOUBLE FOLDING PAD EYE, 6MM DIAMETER, 15/64"

WICHARD DOUBLE FOLDING PAD EYE, 6MM DIAMETER, 15/64"

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
6564W 		Our SKU#: 97695
Minimum Ad Price: $152.90
(MSRP: $179.88)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard Double Folding Pad Eye - 6mm Diameter - 15/64"

Double Folding Pad Eye - 6mm Diameter - 15/64"

Features:

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations

Applications:

  • For any fastening/attachment application
  • Allows to attach several shrouds

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 3170 / (kg) 1440
  • Breaking load; (lb) 5510 / (kg) 2500
  • Weight: (lb) 0.278 / (g) 126

Dimensions:

  • A: (inch) 1 49/64" / (mm) 45
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 35/64" / (mm) 14
  • d diameter: (inch) 1/4" / (mm) 6.4
  • D diameter: (inch) 15/64" / (mm) 6
  • E: (inch) 2 61/64" / (mm) 75
  • F: (inch) 2 21/64" / mm) 59

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
