WICHARD BLACK WATERTIGHT U-BOLT, 8MM DIAMETER, 5/16", 100MM LENGTH, 3-5/16"

WICHARD BLACK WATERTIGHT U-BOLT, 8MM DIAMETER, 5/16", 100MM LENGTH, 3-5/16"

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
65441W 		Our SKU#: 97736
Minimum Ad Price: $46.11
(MSRP: $54.25)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

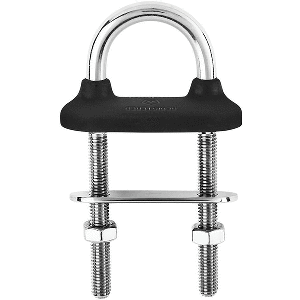

Wichard Black Watertight U-Bolt - 8mm Diameter - 5/16" - 100mm Length - 3-5/16"

Black Watertight U-Bolt - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"

Features:

  • Fully drop-forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • Complete water-tightness thanks to the resistant rubber collar (black color)
  • Easy installation (no need to use a waterproof sealant)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 18 nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Color: Black
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 10580 / (kg) 4800
  • Weight: (lb) 0.3 / (g) 136

Dimensions:

  • Length: (inch) 3 15/16" / (mm) 100
  • A: (inch) 1 27/64" / (mm) 36
  • B; (inch) 63/64" / (mm) 25
  • C: (inch) 2 23/64" / (mm) 60
  • D diameter: (inch) 5/16" / (mm) 8

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
