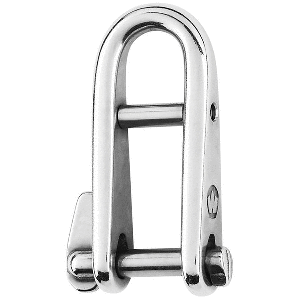

WICHARD HR KEY PIN SHACKLE WITH BAR, 5MM PIN DIAMETER

Wichard HR Key Pin Shackle With Bar - 5mm Pin Diameter

HR Key Pin Shackle With Bar - 5mm Pin Diameter

Features:

Forged D shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
WLL: only for industrial applications (lifting i.e…)
CE marking

Applications:

Applications requesting high loads
Perfect product for halyards or applications requiring opening/closing the shackle often
Do not use it for mooring applications

Specifications:

Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 1050 / (kg) 480
Breaking load: (lb) 3300 / (kg) 1500
Weight: (lb) 0.068 / (g) 31

Dimensions:

A: (inch) 1 29/64" / (mm) 37
B: (inch) 33/64" / (mm) 13
C: (inch) 13/64" / (mm) 5
D: (inch) 7/16" / (mm) 11
E: (inch) 5/32" / (mm) 4
F: (inch) 1 59/64" / (mm) 49
G: (inch) 1 7/32" / (mm) 31
L: (inch) 15/32" / (mm) 12

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)

*Sold as an Individual
