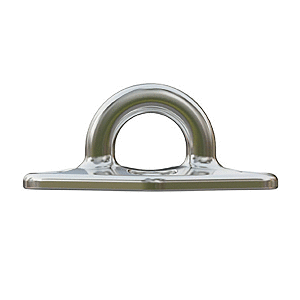

WICHARD DIAMOND PAD EYE, ROUND, 98MM LENGTH (3-55/64"), M8 SCREW

WICHARD DIAMOND PAD EYE, ROUND, 98MM LENGTH (3-55/64"), M8 SCREW

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
6646W 		Our SKU#: 99737
Minimum Ad Price: $56.58
(MSRP: $66.57)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw

Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M8 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 9259.4 / (kg) 4200
  • Breaking Load: (lb) 24691.7 / (kg) 11200
  • Weight: (lb) 0.551 / (g) 250
  • W.L 1 (90 degrees): (lb) 9259.4 / (kg) 4200
  • W.L 2 (45 degrees): (lb) 9259.4 / (kg) 4200
  • W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
  • B.L 1 (90 degrees): (lb) 24691.7 / (kg) 11200
  • B.L 2 (45 degrees): (lb) 24691.7 / (kg) 11200
  • B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

Dimensions:

  • A: (inch) 3 55/64" / (mm) 98
  • B: (inch) 2 7/8" / (mm) 73
  • C: (inch) 2 21/64" / (mm) 59
  • D: (inch) 1 3/8" / (mm) 35
  • E: (inch) 55/64" / (mm) 22
  • F: (inch) 1 1/16" / (mm) 27

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
