WICHARD FOLDING PAD EYE, 6MM DIAMETER (15/64"), 2 FIXED HOLES

WICHARD FOLDING PAD EYE, 6MM DIAMETER (15/64"), 2 FIXED HOLES

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
6684W 		Our SKU#: 99742
Minimum Ad Price: $50.80
(MSRP: $59.76)
Out Of Stock
ETA: Call/Contact Us for an ETA
PRE-ORDER!
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

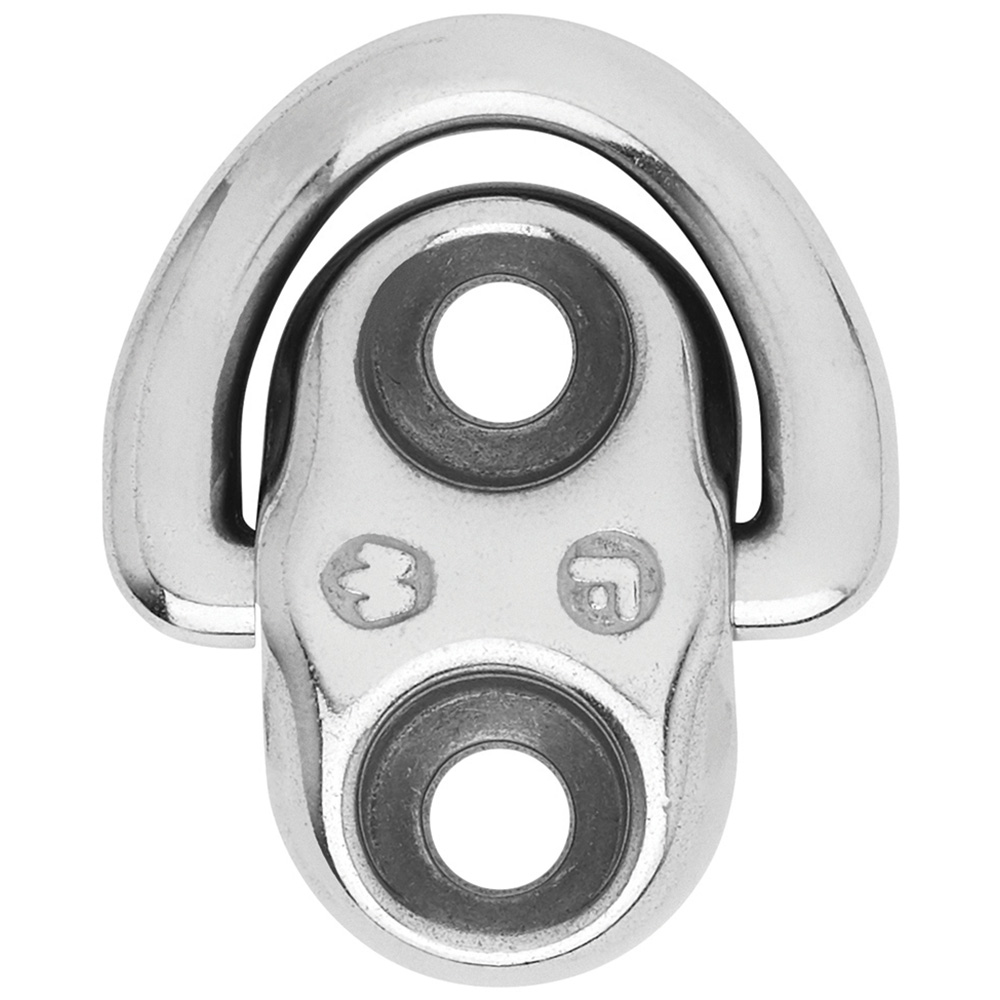

Wichard Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

Features:

  • They are 100% safe and highly resistant to corrosion
  • Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates moist and unpleasant vibrations
  • Modern design

Applications:

  • Fastening applications (stay, blocks, jib tack point, lifeline, etc...)

Specifications:

  • Materials: 316L stainless steel grade
  • Working Load: (lb) 1650 / (kg) 750
  • Breaking Load: (lb) 3520 / (kg) 1600
  • Weight: (lb) 0.123 / (g) 56

Dimensions:

  • A: (inch) 1 37/64" / (mm) 40
  • B: (inch) 59/64" / (mm) 23.4
  • C: (inch) 19/32" / (mm) 15
  • d diameter: (inch) 9/32" / (mm) 7
  • D diameter: (inch) 15/64" / (mm) 6
  • E: (inch) 1 37/64" / (mm) 40

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
