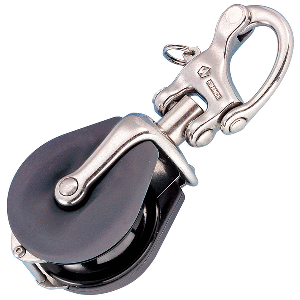

WICHARD SNATCH BLOCK W/SNAP SHACKLE, MAX ROPE SIZE 12MM (15/32")

WICHARD SNATCH BLOCK W/SNAP SHACKLE, MAX ROPE SIZE 12MM (15/32")

Click Here for Larger Image
Some items are "In-Cart" priced.
Wichard Marine Part Number:
34500W 		Our SKU#: 99748
Minimum Ad Price: $292.09
(MSRP: $343.63)

In Stock
Condition:
BRAND NEW
(NOT a "Refurb" or "Reman")

Wichard Snatch Block w/Snap Shackle - Max Rope Size 12mm (15/32")

Snatch Block with Snap Shackle - Max Rope Size 12mm (15/32")

Features:

  • Free rotation thanks to snap shackle
  • Very strong closing system
  • Easy opening by simply pulling on the plunger pin
  • Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

  • Changing sheets
  • Spinnaker sheet deflector blocks

Materials:

  • HR 17.4 PH forged stainless steel arm
  • Elastomer molded cheeks
  • Composite sheave

Specifications:

  • Rope size: (inch) 15/32" / (mm) 12
  • Length: (inch) 5 45/64" / (mm) 145
  • Width: (inch) 2 21/64" / (mm) 59
  • Thickness: (inch) 1 11/16" / (mm) 43
  • Working Load: (lb) 1580 / (kg) 720
  • Breaking Load: (lb) 2860 / (kg) 1300
  • Weight: (lb) 0.56 / (g) 254

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
